MA8701 Advanced methods in statistical inference and learning

Week 3 (L5+L6): Missing data

Author

Mette Langaas

Published

January 27, 2023

Course homepage: https://wiki.math.ntnu.no/ma8701/2023v/start

Reading list:

Graphical overview of the topics covered in W3

1 Missing data

Many statistical analysis methods (for example regression) require the data (for analysis) to be complete. That is, for all data record (observations, rows) all the variable under study must be observed. But, in the real world this is not the case - some variables are missing for some observations (records, rows).

What are reasons for data to be missing?

Some reasons (not exhaustive):

  • nonresponse,
  • measurement error,
  • data entry errors,
  • data collection limitations,
  • sensitive or private information,
  • data cleaning.

The missingness may be intentional (sampling) or unintentional (refusal, self-selection, skip questions, coding error).

1.1 What can we do?

  • delete all data records that are incomplete (have at least one missing value), and analyse these complete cases

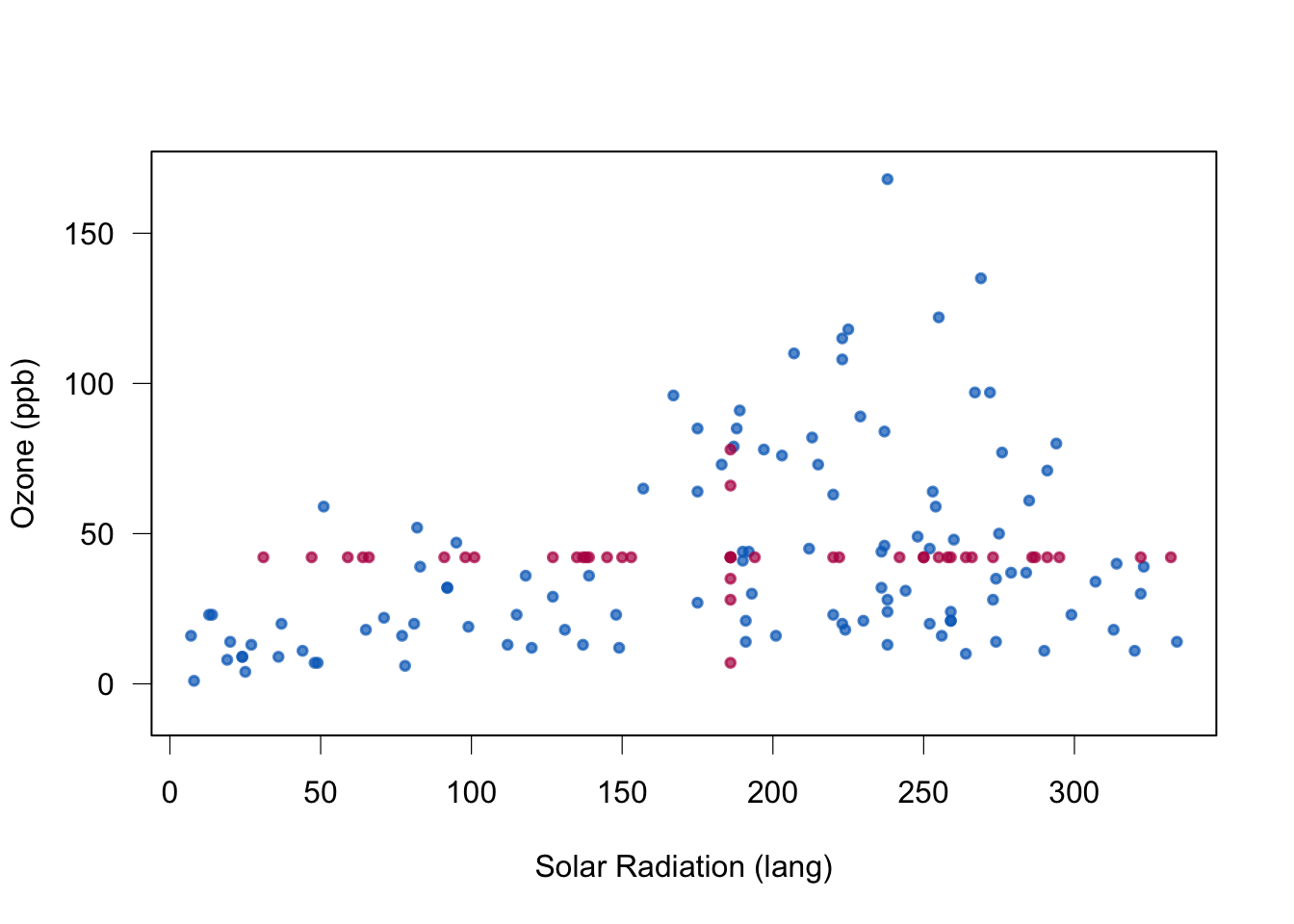

  • fill in a missing value with a “representative” value to get complete data aka single imputation
  • as above, but make m datasets and analyse them all and then combine the results
  • use statistical methods that have built in mechanisms to handle missing data (more about this in Part 3 - hint: trees)
  • likelihood-based methods, where the missing data are modelled inside the model (not covered here)
  • if the reason (mechanism) for the missing data is known, build a statistical model that takes this into account (will not be covered here).

It is important to understand the underlying mechanism for the observations to be missing, so that we may treat the missing data appropriately.

If we do not treat missing data correctly, this may lead to

  • wrong conclusions (the observed data might not be representative for the population under study),
  • there is a loss of power for statistical tests (or length of CIs) so that conclusions are weaker than if the data were complete, and
  • the statistical analyses may be complicated since standard methods (assuming no missing data) can´t be used.

We first look at notation and then definitions of missing mechanisms.

1.2 Data sets

(Text provided by ChatGPT to “describe the NHANES data set in the mice R package.)

1.2.1 NHANES

The NHANES (National Health and Nutrition Examination Survey) data set is a collection of health and nutrition information collected by the National Center for Health Statistics (NCHS) of the Centers for Disease Control and Prevention (CDC). It is a nationally representative sample of the non-institutionalized civilian population of the United States. The data set includes information on demographic characteristics, health status, and health behaviors, as well as laboratory test results.

The data set is taken from Schafer, J.L. (1997). Analysis of Incomplete Multivariate Data. London: Chapman & Hall. Table 6.14.

  • nhanes/nhanes2: data frame with 25 observations of four variables (age (three age groups), bmi (kg/\(m^2\)), hyp=hypertensive (1=no, 2=yes), chl=total serum cholesterol (mg/dL))
  • nhanes/nhanes2: the same data sets, but in nhanes all variables are treated as numerical

[1] 25  4

1.2.2 Airquality

R base datasets. Daily air quality measurements in New York, May to September 1973.

  • Ozone numeric Ozone (ppb)
  • Solar.R numeric Solar R (lang)
  • Wind numeric Wind (mph)
  • Temp numeric Temperature (degrees F)
  • Month numeric Month (1–12)
  • Day numeric Day of month (1–31)

[1] 153   6

1.2.3 Growth of Dutch boys

(mice R package)

The data set of growth of 748 Dutch boys. Nine measurements

  • age: decimal age (0-21 years)
  • hgt: height (cm)
  • wgt: weight (kg)
  • bmi
  • hc: head circumference (cm)
  • gen: genital Tanner stage (G1-G5). Ordered factor
  • phb: pubic hear (Tanner P1-P6). Ordered factor
  • tv: testicular volume (ml)
  • reg: region (north, east, west, south, city). Factor

[1] 748   9

1.2.4 Pima indians

(MASS R package)

We will use the classical data set of diabetes from a population of women of Pima Indian heritage in the US, available in the R MASS package. The following information is available for each woman:

  • diabetes: 0= not present, 1= present (variable called type)
  • npreg: number of pregnancies
  • glu: plasma glucose concentration in an oral glucose tolerance test
  • bp: diastolic blood pressure (mmHg)
  • skin: triceps skin fold thickness (mm)
  • bmi: body mass index (weight in kg/(height in m)\(^2\))
  • ped: diabetes pedigree function.
  • age: age in years

We will look at a data set (Pima.tr2) with a randomly selected set of 200 subjects (Pima.tr), plus 100 subjects with missing values in the explanatory variables.

[1] 300   8

1.3 Group discussion

Make sure the three types of plots are understood!

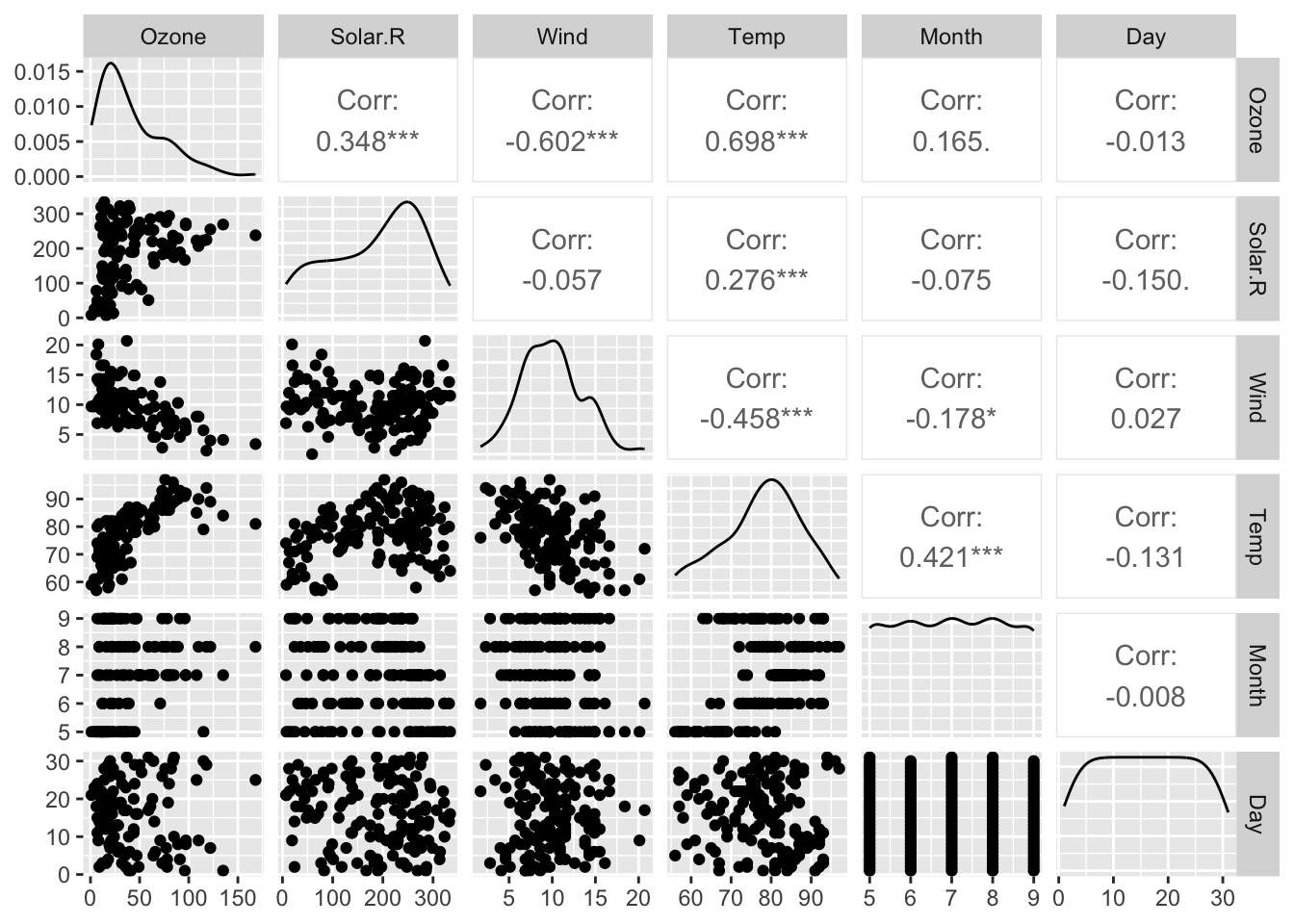

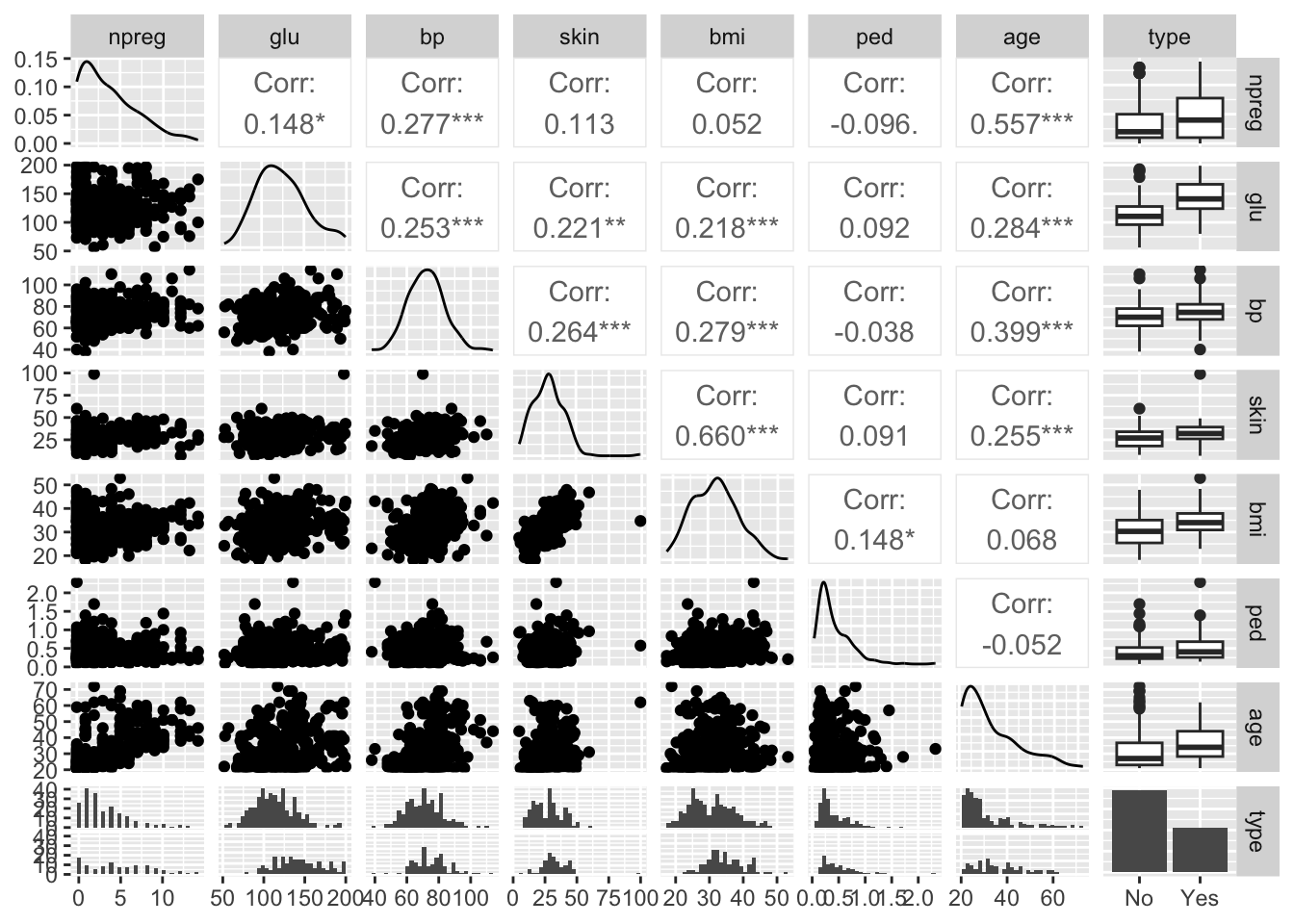

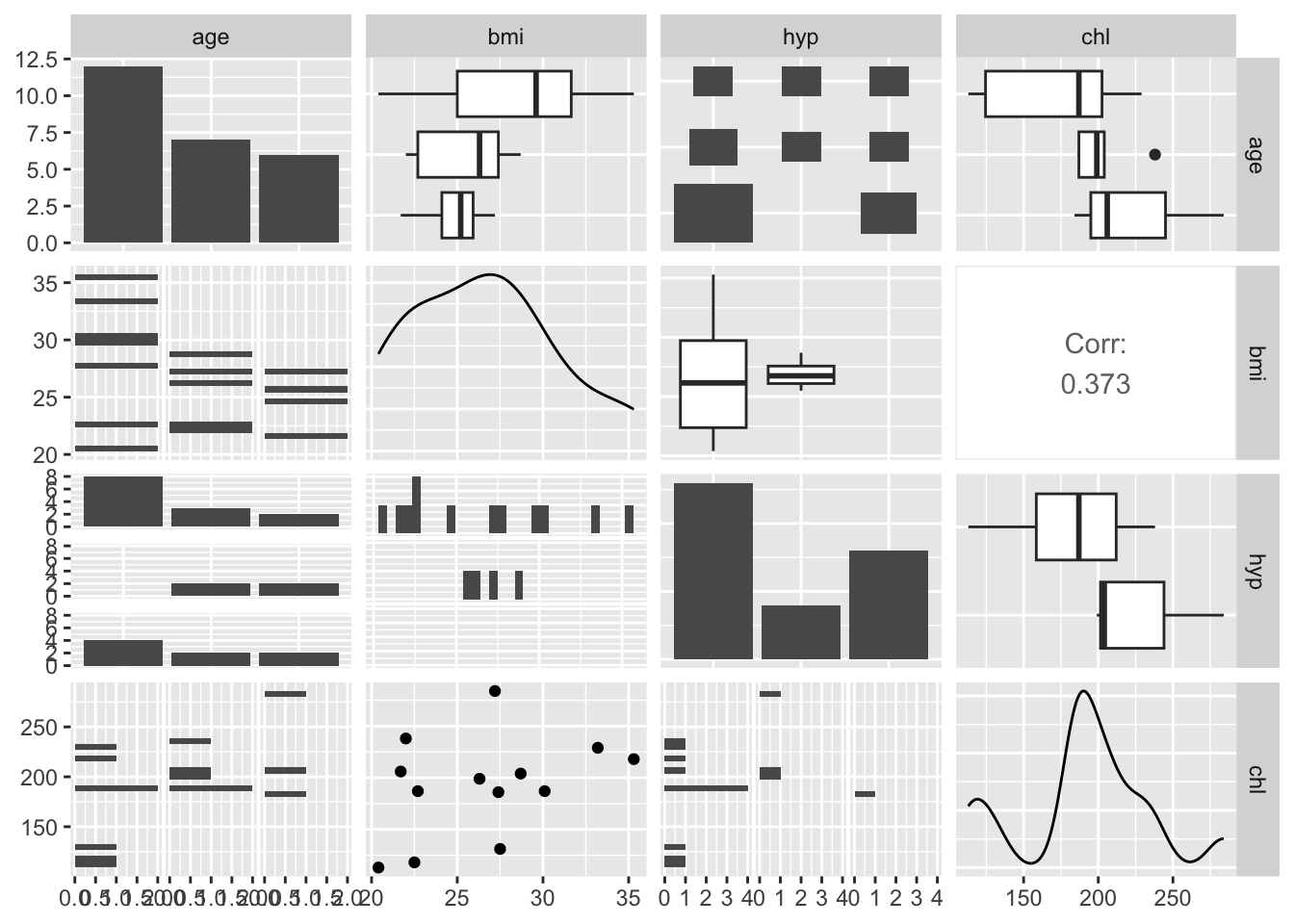

  • pairs plot

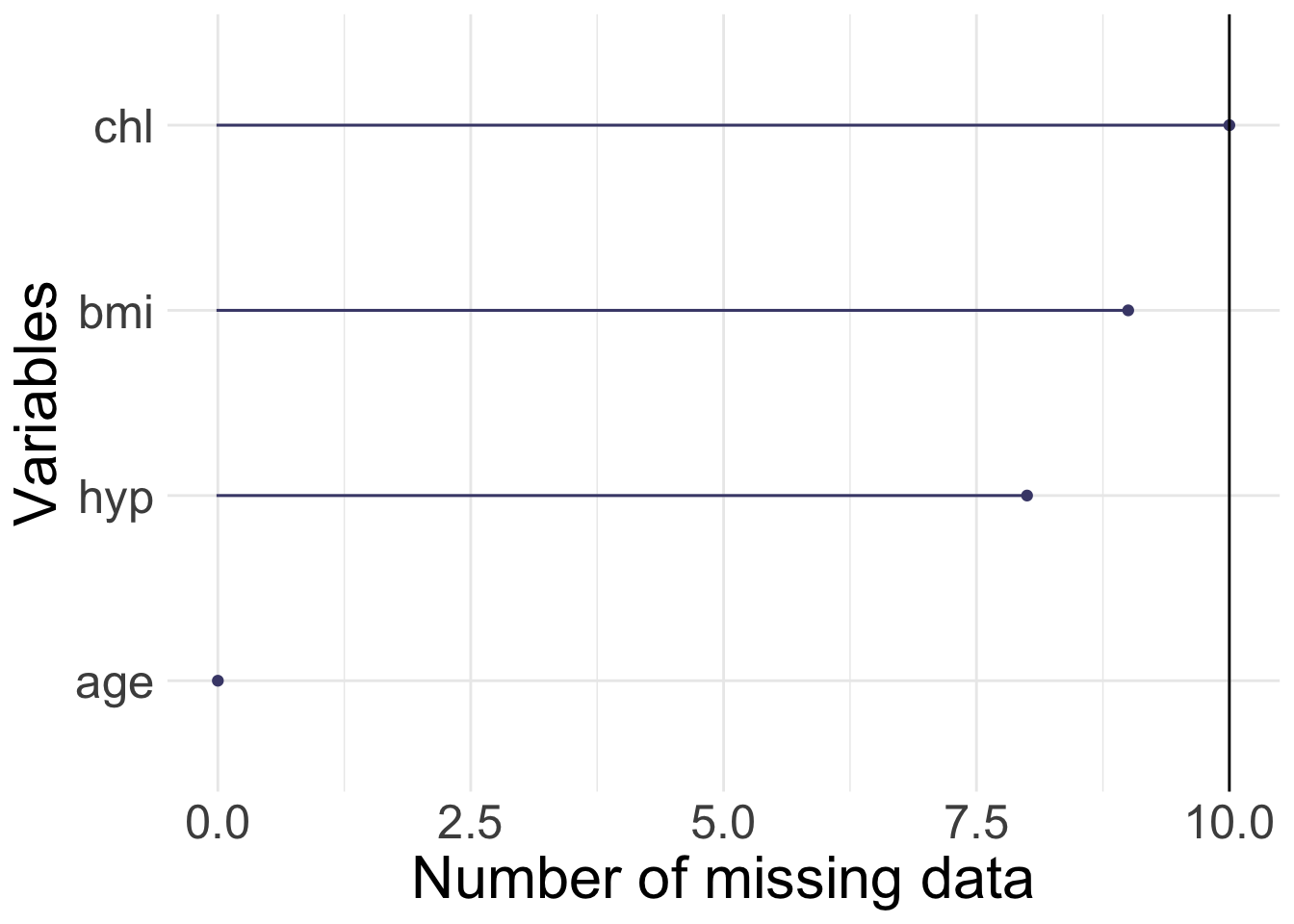

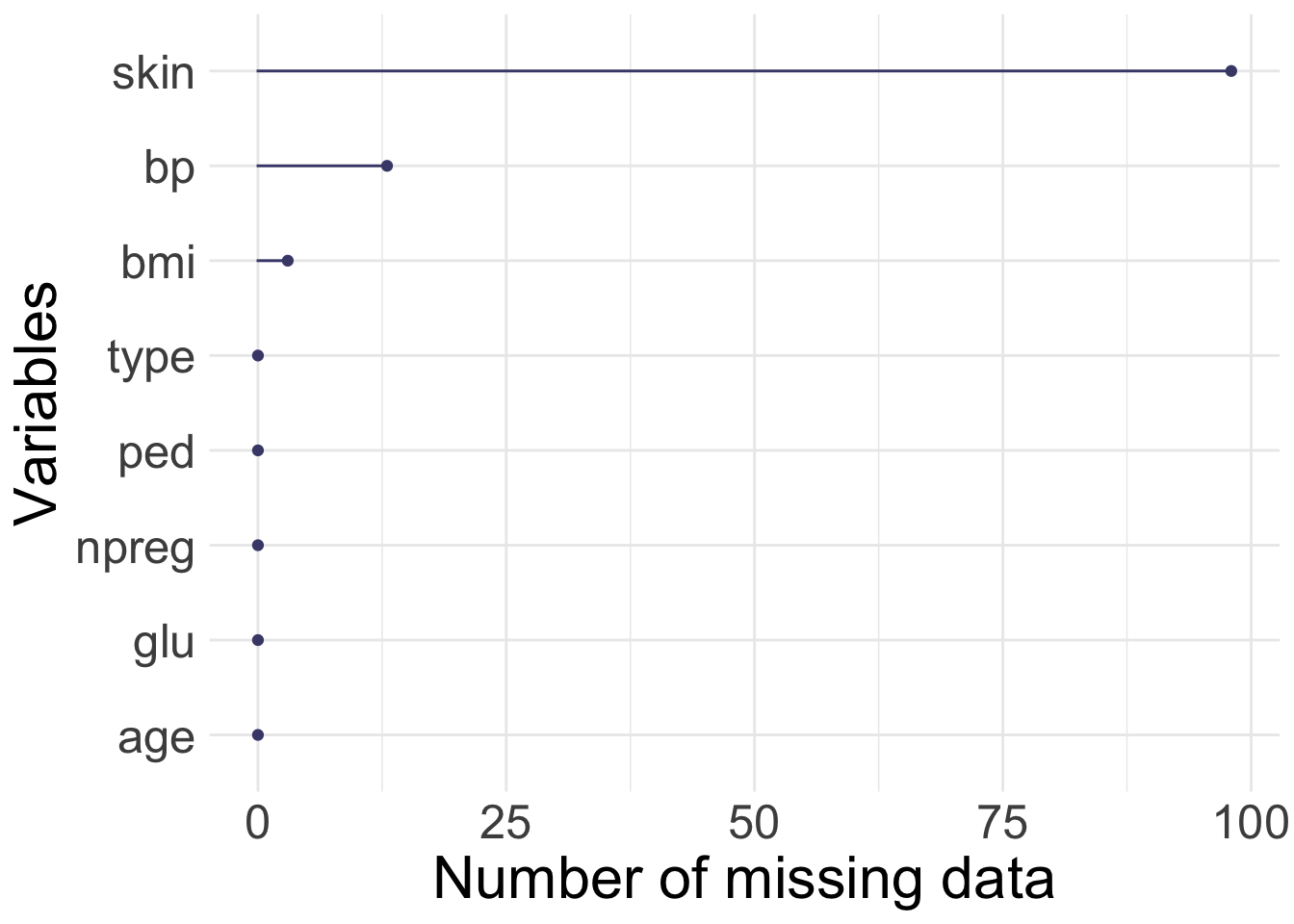

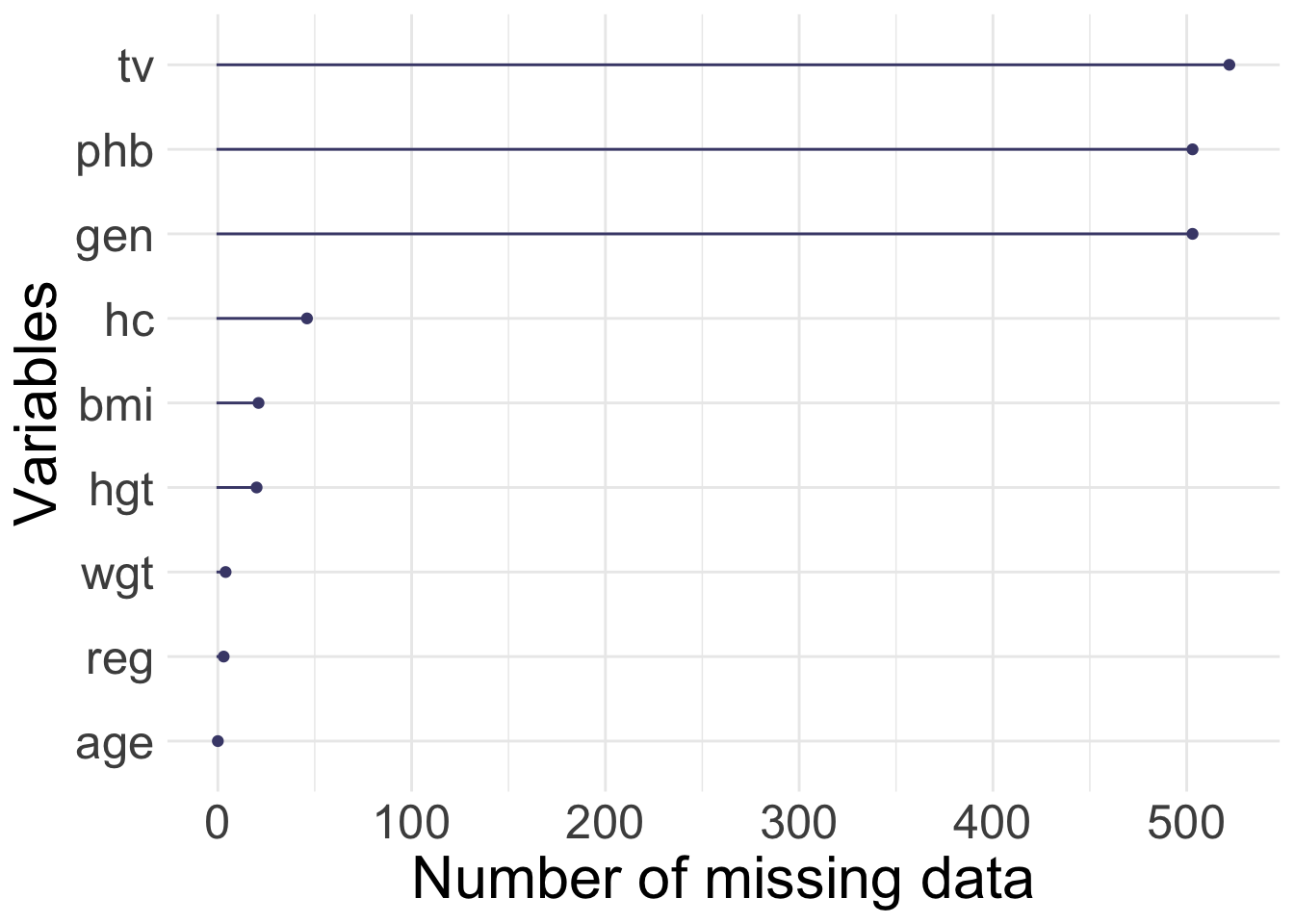

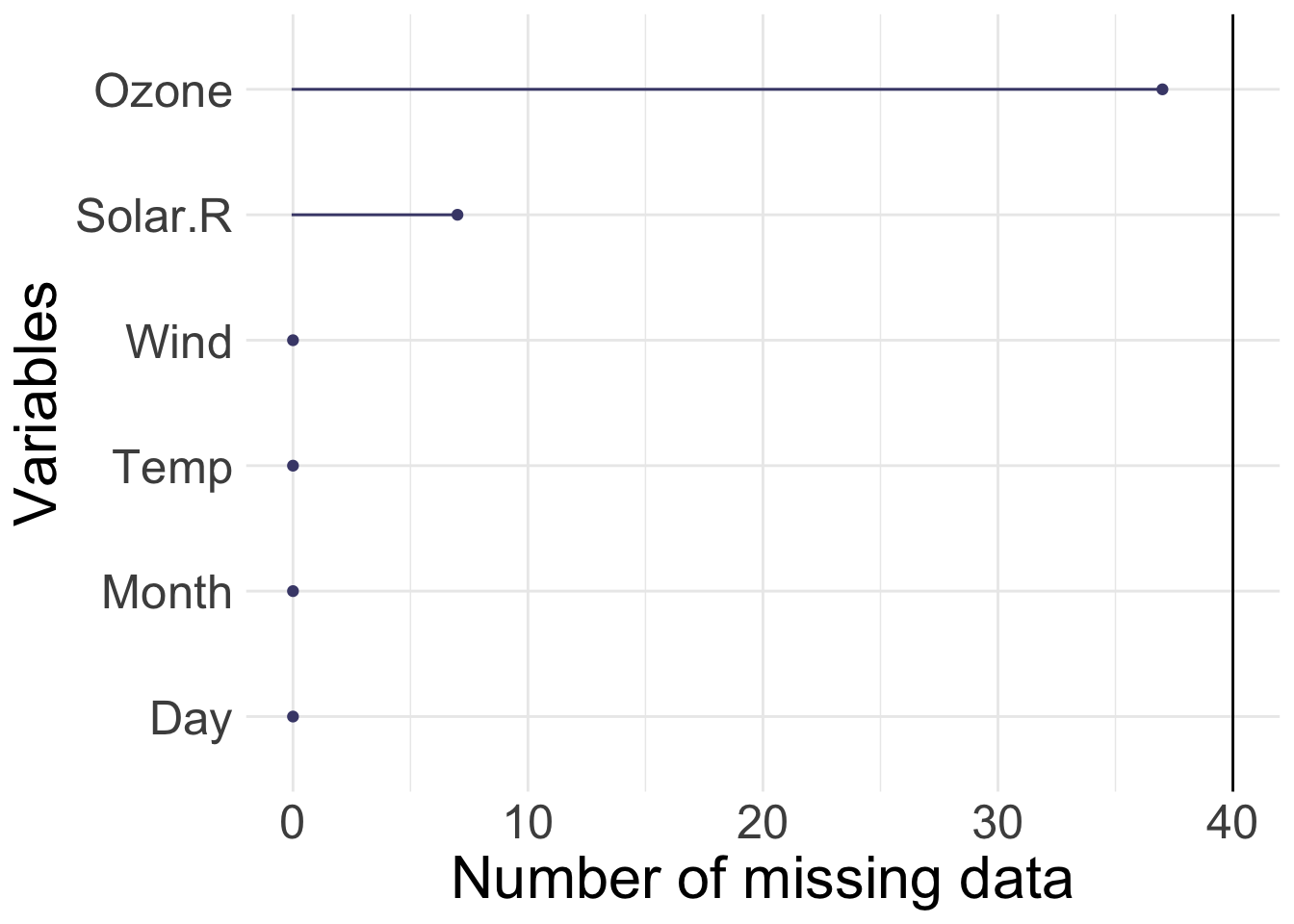

  • number of missing values

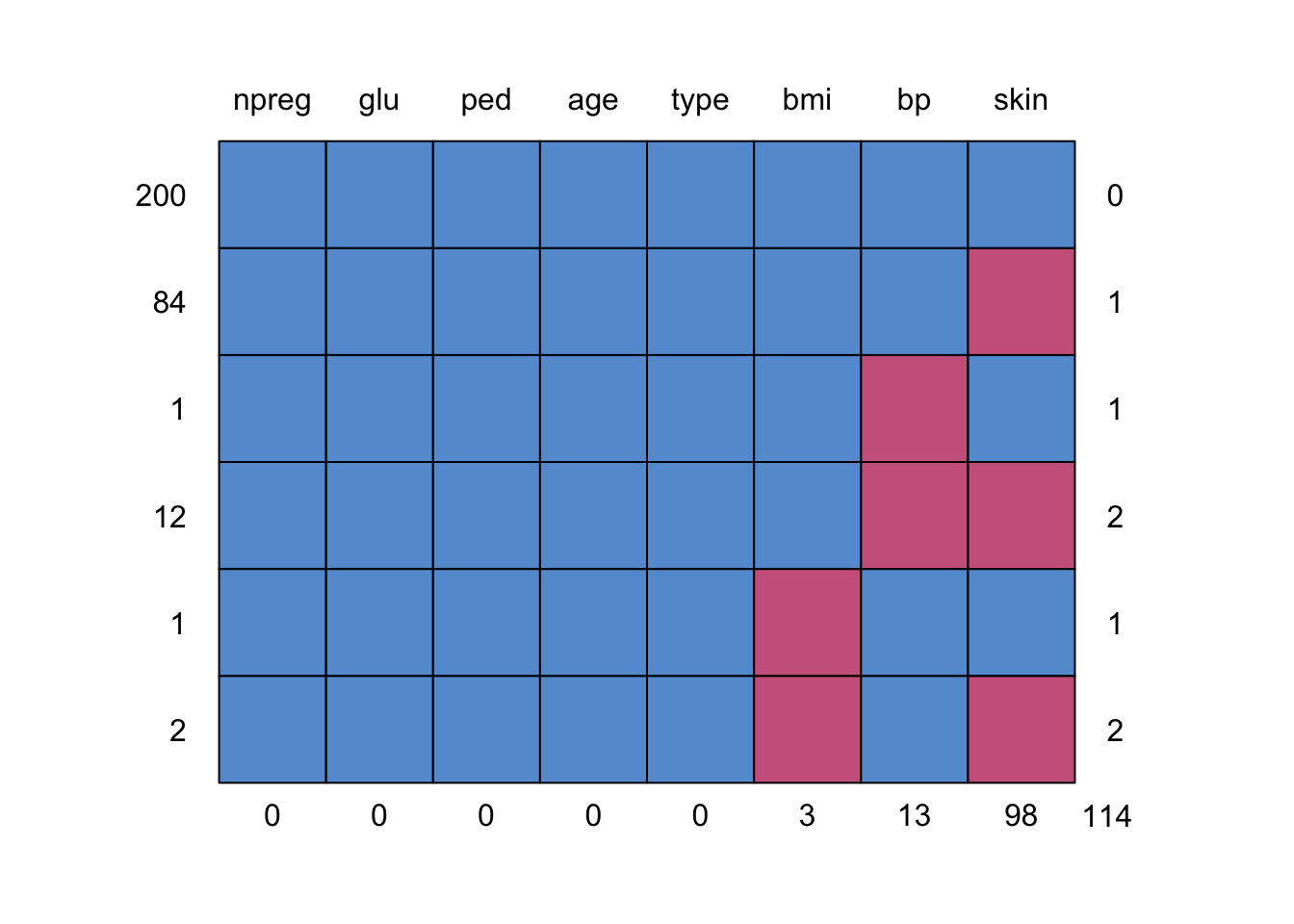

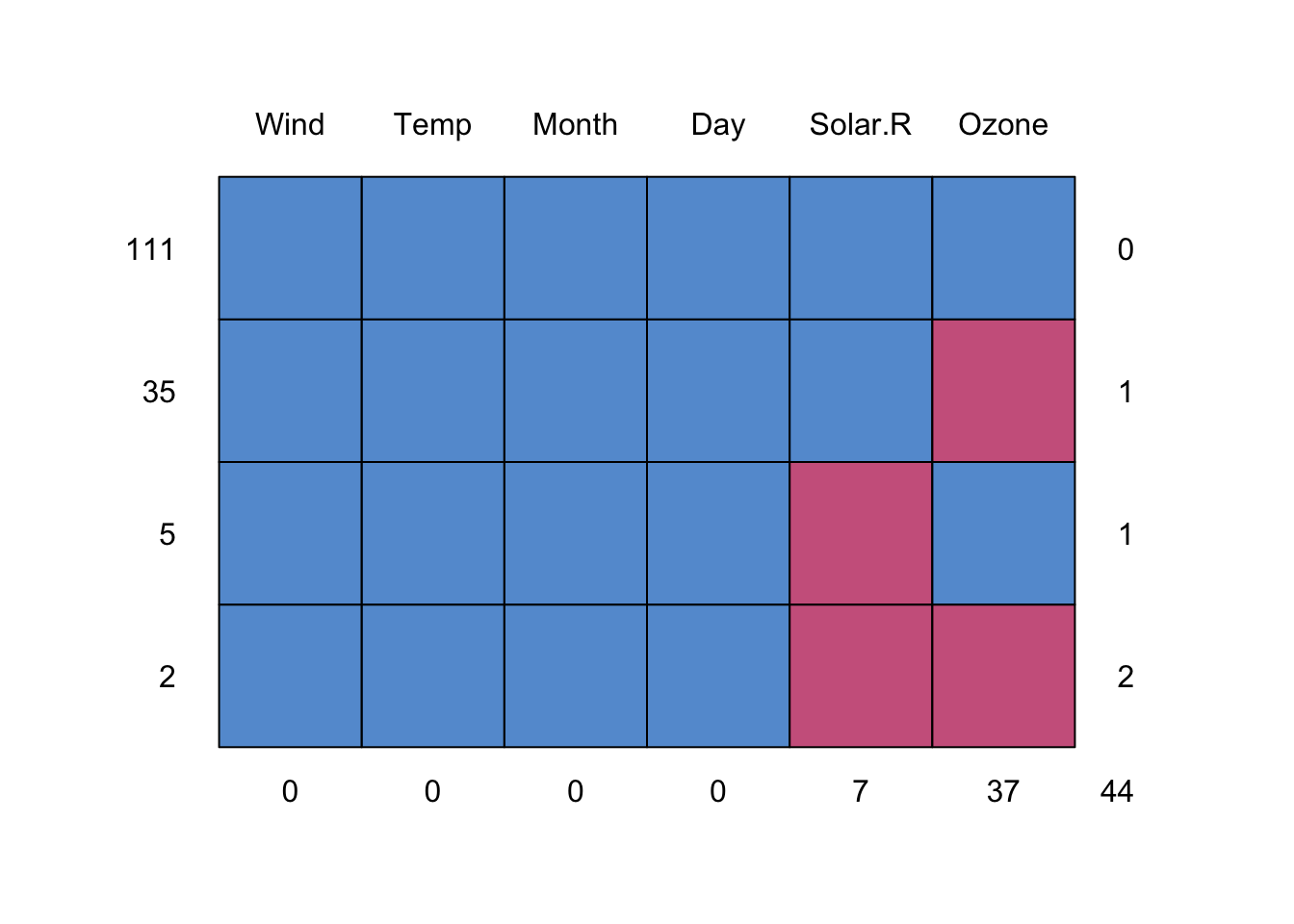

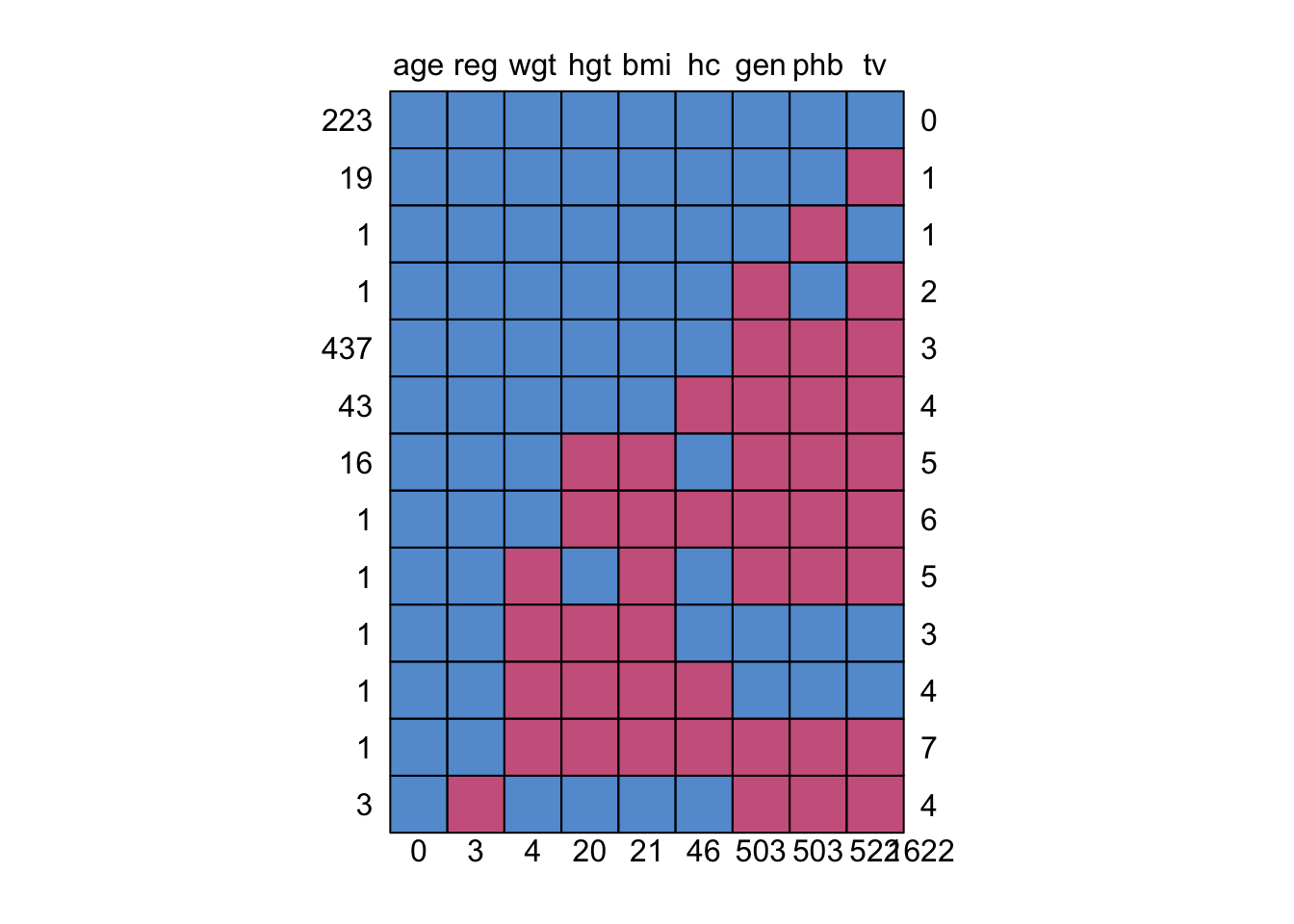

  • missing patterns

2 Notation and missing mechanicms

2.1 Notation

We will use different letters for response and covariates, but often that is not done in other sources. (We will assume that missing values are only present in the covariates and not the response.)

By response we mean the response in the intended analysis model and ditto for the covariates. (We will later also talk about an imputation model but this is not connected to our notation here.)

  • \({\mathbf y}\): response vector (no missing values)
  • \({\mathbf X}\): the full covariate matrix
  • \({\mathbf Z}=({\mathbf X},{\mathbf y})\): full responses and covariates
  • \({\mathbf X}_{\text{obs}}\): the observed part of the covariate matrix
  • \({\mathbf X}_{\text{mis}}\): the missing part of the covariate matrix
  • \({\mathbf Z}_{\text{obs}}=({\mathbf X}_{\text{obs}},{\mathbf y})\): the observed responses and covariates
  • \({\mathbf R}\): indicator matrix (0/1) for missingness/observability of \({\mathbf X}\), where \(1\) denotes observed and \(0\) denotes missing. (ELS 9.6 does the opposite, but that is not the common use.)
  • \(\psi\): some parameter in the distribution of \({\mathbf R}\).

We may use the indicator matrix together with the missing data vector and observed data vector to write out the full covariate matrix.

The missing data mechanism is characterized by the conditional distribution of \({\mathbf R}\); \[P({\mathbf R} \mid {\mathbf Z},\psi)\]

2.2 Missing completely at random (MCAR)

\[P({\mathbf R} \mid {\mathbf Z},\psi)=P({\mathbf R} \mid \psi)\]

  • All observations have the same probability of being missing, and
  • the missing mechanism is not related to the data (not to observed or missing data).

If observations with MCAR data are removed that should not bias the analyses (but the sample size will of cause be smaller), because the subset of complete observations should have the same distribution as the full data set.

Examples:

  • measure weight, and the scales run out of battery
  • similar mechanism to taking a random sample
  • a tube containing a blood sample of study subject is broken by accident and then the blood sample could not be analysed (a set of covariates are then missing)

2.3 Missing at random (MAR)

\[P({\mathbf R} \mid {\mathbf Z},\psi)=P({\mathbf R} \mid {\mathbf Z}_{\text obs},\psi)\]

  • The probability of an entry to be missing depends (possibly) on observed data, but not on unobserved data.
  • Thus, all information about the missing data that we need to perform valid statistical analysis is found in the observed data (but maybe difficult to construct a model for this).
  • In a regression or classifiation setting this means that the missingness of a covariate may be dependent on the observed response.
  • Remark: not dependent on what could have been observed (i.e. what is not observed).

Examples:

  • measure weight, and the scales have different missing proportions when being on a hard or soft surface
  • we have a group of healthy and sick individuals (this is the reponse), and for a proportion of the sick individuals the result of a diagnostic test is missing but for the healthy individuals there are no missing values

Most methods for handling missing data require the data to be MAR. If you know that the missingness is at least MAR, then there exists tests to check if the data also is MCAR.

2.4 Missing not at random (MNAR)

We have MNAR if we don´t have MAR or MCAR.

Then the missing mechanism could depend on what we could have measured (unobserved data) or other observed values (covariates or response that we are noe collecting). Statistical analyses can not be performed without modelling the underlying missing data mechanism.

Examples:

  • the scales give more often missing values for heavier objects than for lighter objects
  • a patient is too sick to perform some procedure that would show a high value of a measurement
  • when asking a subject for his/her income missing data are more likely to occur when the income level is high

2.5 Group discussion

So far in your study/work/other - you might have analysed a data set (maybe on Kaggle or in a course). Think of one such data set.

  • Did this data set have missing values?
  • If yes, did you check if the observations were MCAR, MAR or MNAR?
  • What did you (or the teacher etc) do to handle the missing data?

If you have not analysed missing data, instead look at the synthetic generation of data with different missing mechanisms below!

2.6 Synthetic example with missing mechanisms

Example from van Buuren (2018) Chapter 2.2.

A bivariate (0.5 correlation) normal response \((Y_1,Y_2)\) is generated \(N=300\), and then data are removed from the second component \(Y_2\). This is done in three ways:

  • MCAR: each observation \(Y_2\) is missing with probability 0.5
  • MAR: each observation \(Y_2\) is missing with probability dependent on \(Y_1\)
  • MNAR: each observation \(Y_2\) is missing with probability dependent on \(Y_2\).

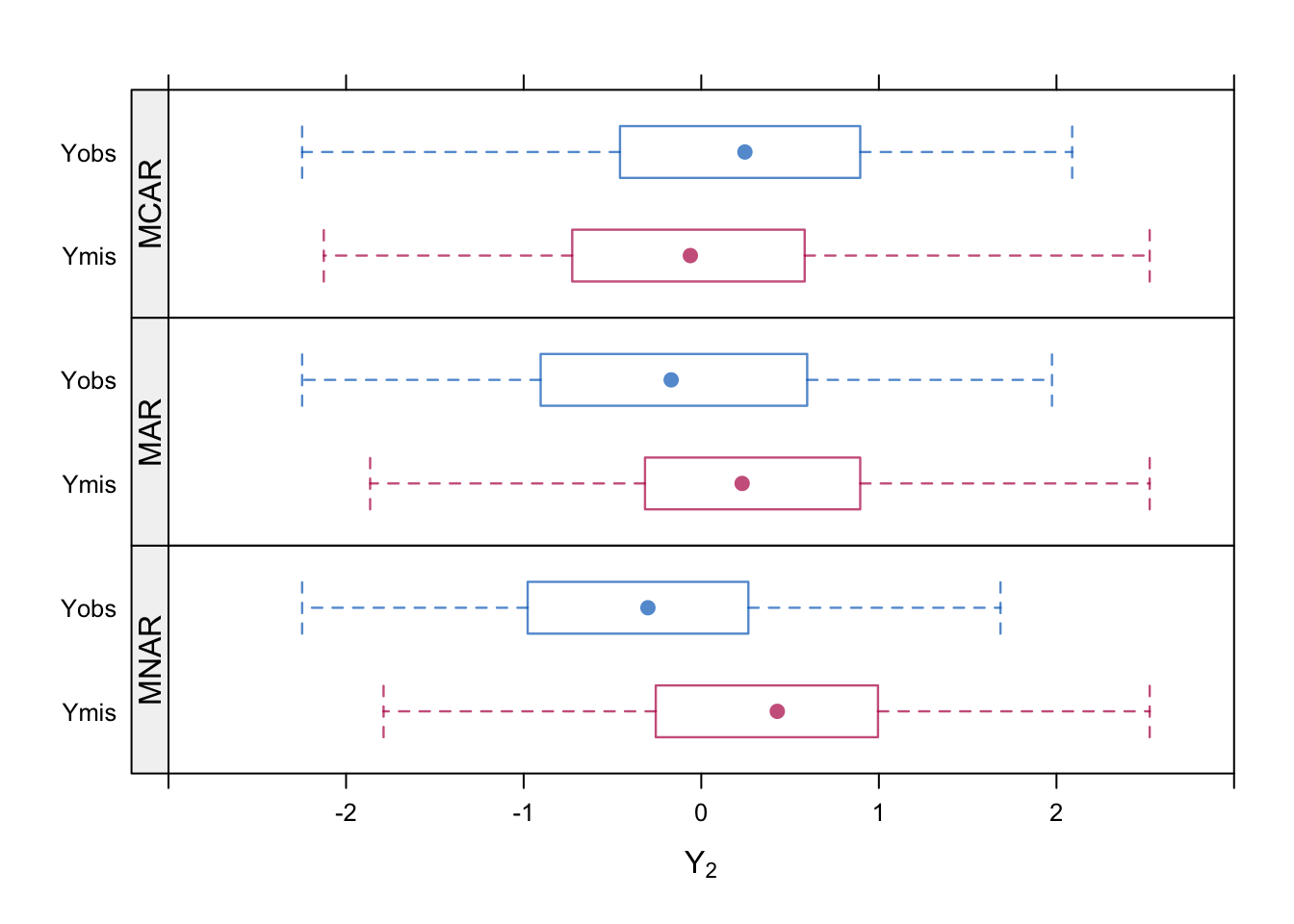

The boxplots of observed and missing values are shown.

Code
#|echo: true
#|warnings: false
#|error: false
# code from https://github.com/stefvanbuuren/fimdbook/blob/master/R/fimd.R
logistic <- function(x) exp(x) / (1 + exp(x))
set.seed(80122)
n <- 300
y <- MASS::mvrnorm(n = n, mu = c(0, 0),
                   Sigma = matrix(c(1, 0.5, 0.5, 1), nrow = 2))
r2.mcar <- 1 - rbinom(n, 1, 0.5)
r2.mar  <- 1 - rbinom(n, 1, logistic(y[, 1]))
r2.mnar <- 1 - rbinom(n, 1, logistic(y[, 2]))
Code
#|echo: false
#|warnings: false
#|error: false
# code from https://github.com/stefvanbuuren/fimdbook/blob/master/R/fimd.R
library(lattice)
y1 <- y[, 1]
y2 <- y[, 2]
y3 <- rbind(y,y,y)
r2 <- c(r2.mcar,r2.mar,r2.mnar)
r2 <- factor(r2, labels=c("Ymis","Yobs"))
typ <- factor(rep(3:1,each=n),labels=c("MNAR","MAR","MCAR"))
d <- data.frame(y1=y3[,1],y2=y3[,2],r2=r2,typ=typ)
trellis.par.set(box.rectangle=list(col=c(mdc(2),mdc(1)),lwd=1.2))
trellis.par.set(box.umbrella=list(col=c(mdc(2),mdc(1)),lwd=1.2))
trellis.par.set(plot.symbol=list(col=mdc(3),lwd=1))
tp <- bwplot(r2~y2|typ, data=d,
             horizontal=TRUE, layout=c(1,3),
             xlab=expression(Y[2]),
             col=c(mdc(2),mdc(1)),strip=FALSE, xlim=c(-3,3),
             strip.left = strip.custom(bg="grey95"))
print(tp)

4 Multiple imputation

4.1 Short historical overview

Historically multiple imputation dates back to Donald B. Rubin in the 1970´s. The idea is that multiple data set (multiple imputations) will reflect the uncertainty in the missing data. To construct the \(m\) data sets theory from Bayesian statistics is used, but executed within the frequentist framework. Originally \(m=5\) imputed data sets was the rule of thumb.

The method did not become a standard tool until 2005 (according to van Buuren (2018), 2.1.2), but now in 2023 it is widely used in statistics and has replaced version of single imputation. However, multiple imputation is not main stream in machine learning.

4.2 Overview of the steps of the method

  • Devise a method to construct the distribution of each covariate (that can be missing) based on other covariates (often a regression method). This is the Imputation model.
  • Sample multiple observation for each missing value, and get \(m\) complete dataset.
  • Analyse all \(m\) dataset as complete datasets with ordinary statistical methods (using the Analysis model)
  • and weigh the results together using something called Rubin´s rules.

The method gives powerful and valid inference for MAR and MCAR, and “solved” the problem with the “too small standard errors” for the single imputation methods.

Lydersen (2022) gives a nice overview for medical doctors.

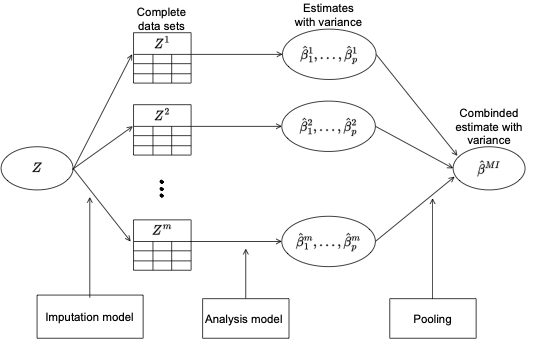

Schematic for multiple imputation from Marthe Bøe Ludvigsen project thesis.

Code
include_graphics("MIflowMBL.png")

We start with explaining the method for combining estimates with uncertainties from the \(m\) complete data analyses (using the planned Analysis model), and wait til the end with the Imputation model!

4.3 Analysis model

4.3.1 Pima indian data

In the Pima indian data set the aim is to model the connection between the presence/absence of diabetes (binary response) and the other measured variable.

This is the Analysis model for the Pima indian example.

4.3.2 Other examples

In other cases we might have a linear regression model.

In class we will look at an analysis by Marthe Bøe Ludvigsen for possible risk factors for predicting low and high levels of the suicial crisis syndrome. This is a collaboration with Terje Torgersen and Linde Melby at St Olavs Hospital/NTNU.

5 Rubin’s rules

5.1 Algorithmic view

Fist we look at formulas for our quantities of interest, and next the Bayesian motivation for the formulas.

5.1.1 Quantity of interest

We denote our quantity (parameter) of interest by \(\mathbf{Q}\), and assume this to be a \(k\times 1\) column vector.

Example 1: Multiple linear regression

\[\begin{align} \mathbf{Y} = \mathbf{X}{\boldsymbol \beta} + \boldsymbol{\varepsilon} \end{align}\] where \(\boldsymbol{\varepsilon}\sim N(\mathbf{0},\sigma^2\mathbf{I})\).

Here \(\mathbf{Q}=\boldsymbol{\beta}\).

Example 2: Logistic regression

Again \(\mathbf{Q}=\boldsymbol{\beta}\).

\(\mathbf{Q}\) can also be a vector of population means or population variances. It may not depend on a particular sample, so it cannot be a sample mean or a \(p\)-value.

5.1.2 Estimator

If we have a complete data set - our imputed data set number \(l\). we might get \(\hat{\mathbf{Q}}_l\) as our estimate. This takes into account the variablity in the complete data set.

Example 1: \(\hat{\boldsymbol{\beta}}=({\mathbf X}^T{\mathbf X})^{-1} {\mathbf X}^T {\mathbf Y}\)

Example 2: Maximizing the binary likelihood for the logistic regression (GLM with logit link) does not give a closed form solution, but a numerical value for \(\hat{\boldsymbol{\beta}}\) is found using Newton-Raphson.

We also want to take into account the fact that we have \(m\) complete data sets (multiple imputations). Let the pooled estimate be \[ \overline{\mathbf{Q}}=\frac{1}{m}\sum_{l=1}^m \hat{\mathbf{Q}}_l\]

This is based on each of the estimated \(\mathbf{Q}\) in our \(m\) imputed data set.

Next: uncertainty in \(\hat{\mathbf{Q}}_l\) and \(\overline{\mathbf{Q}}\).

5.1.3 Variance estimator

What is the variance of the new estimator \(\overline{\mathbf{Q}}\)?

Let \(\overline{\mathbf{U}}_l\) be the estimated covariance of \(\hat{\mathbf{Q}}_l\).

Example 1: \(\widehat{\text{Cov}}(\hat{\boldsymbol{\beta}})=({\mathbf X}^T{\mathbf X})^{-1} \hat{\sigma}^2\)

Example 2: \(\widehat{\text{Cov}}(\hat{\boldsymbol{\beta}})\approx I^{-1}(\hat{\boldsymbol{\beta}})\) the inverse of the estimated Fisher information matrix.

  1. Within-imputation variance \[\overline{\mathbf U}=\frac{1}{m}\sum_{l=1}^m \overline{\mathbf{U}}_l\]

  2. Between-imputation variance \[\mathbf B=\frac{1}{m-1}\sum_{l=1}^m (\hat{\mathbf{Q}}_l-\overline{\mathbf{Q}})(\hat{\mathbf{Q}}_l-\overline{\mathbf{Q}})^T\]

  • \(\overline{\mathbf U}\): large if the number of observations \(N\) is small
  • \({\mathbf B}\): large if many missing observations
  1. Total variance of \(\overline{\mathbf{Q}}\)

\[\mathbf{T}=\overline{\mathbf U}+\mathbf{B}+\frac{\mathbf{B}}{m}=\overline{\mathbf U}+(1+\frac{1}{m})\mathbf{B}\]

  • First term: variance due to taking a sample and not examining the entire population (our conventional variance of estimator.
  • Second term: extra variance due to missing values in the samples
  • The last term is the simulation error: added because \(\overline{\mathbf{Q}}\) is based on finite \(m\)

5.1.4 Variance ratios

for scalar \(Q\) (for example one of the regression coefficients)

Proportion of variation “attributable” to the missing data \[ \lambda=\frac{B+B/m}{T}\] Relative increase in variance due to missingness

\[r=\frac{B+B/m}{\overline{U}}\]

Relation:

\[ r=\frac{\lambda}{1-\lambda}\]

5.1.5 Confidence interval

Common assumption: \(\overline{\mathbf{Q}}\) is multivariate normal with mean \(\mathbf{Q}\) and estimated covariance matrix \(\mathbf{T}\).

We look at one component of \(\mathbf{Q}\), denoted \(Q\) (maybe regression parameter for a specific covariate), antd \(T\) is the appropriate component of the total variance estimate.

\((1-\alpha)100\%\) confidence interval for \(Q\):

\[\overline{Q} \pm t_{\nu,1-\alpha/2}\sqrt{T}\]

where \(t_{\nu,1-\alpha/2}\) is the value in the \(t\)-distribution with \(\nu\) degrees of freedom with area \(1-\alpha/2\) to the left.

What is \(\nu\)?

5.1.6 Hypothesis test

We want to test \(H_0: Q=Q_0\) vs \(H_1: Q\neq Q_0\). The \(p\)-value of the test can be calculated as \[ P(F_{1,\nu} > \frac{(\overline{Q}-Q_0)}{T})\]

where \(F_{1,\nu}\) is a random variable following a Fisher distribution with \(1\) and \(\nu\) degrees of freedom.

5.1.7 Degrees of freedom

van Buuren (2018) Chapter 2.3.6 attributed this first solution to Rubind in 1987.

\[\nu_{\text{old}}=(m-1)(1+\frac{1}{r^2})=\frac{m-1}{\lambda^2}\]

If \(\lambda=1\) then all variability is due to the missingness and then \(\nu_{\text{old}}=m-1\).

If \(\lambda\rightarrow 0\) then \(\nu_{\text{old}}\rightarrow \infty\) (normal distribution instead of t, chisq instead of F).

van Buuren (2018) Chapter 2.3.6: A newer solution is due to Barnard and Rubin in 1999.

\[\nu_{\text{com}}=n-k\]

\[\nu_{\text{obs}}=\frac{\nu_{\text{com}}+1}{\nu_{\text{com}}+3} \nu_{\text{com}}(1-\lambda)\] \[\nu=\frac{\nu_{\text{old}}\nu_{\text{obs}}}{\nu_\text{old}+\nu_{\text{obs}}}\]

5.1.8 RHANES R-example

Code
imp <- mice(nhanes, print = FALSE, m = 10, seed = 24415)
fit <- with(imp, lm(bmi ~ age))
est <- pool(fit)
est
Class: mipo    m = 10
         term  m  estimate      ubar         b        t dfcom       df
1 (Intercept) 10 29.621111 3.4810048 1.4312926 5.055427    23 12.62920
2         age 10 -1.802222 0.9257992 0.2759968 1.229396    23 14.42517
        riv    lambda       fmi
1 0.4522895 0.3114320 0.3995451
2 0.3279291 0.2469478 0.3333805

Identify the the different estimates defined above!

  • df is the \(\nu\) above (Barnard-Rubin),
  • while dfcom is the \(\nu_{\text{com}}\).
  • \(r\): proportion of variance to due to missingness
  • \(\lambda\): fraction of missing information
  • \(\gamma\): fraction of information about \(Q\) due to missingness (not given formula)

5.1.9 Airquality R-example

Code
imp <- mice(airquality, print = FALSE, m = 10, seed = 24415)
fit <- with(imp, lm(Wind ~ Ozone))
est <- pool(fit)
est
Class: mipo    m = 10
         term  m    estimate         ubar            b            t dfcom
1 (Intercept) 10 12.59824641 1.520270e-01 2.593886e-02 1.805597e-01   151
2       Ozone 10 -0.06245227 5.416219e-05 1.599145e-05 7.175278e-05   151
        df       riv    lambda       fmi
1 93.07909 0.1876821 0.1580238 0.1755506
2 64.23966 0.3247762 0.2451555 0.2676079

5.1.10 Dutch boys R-example

Code

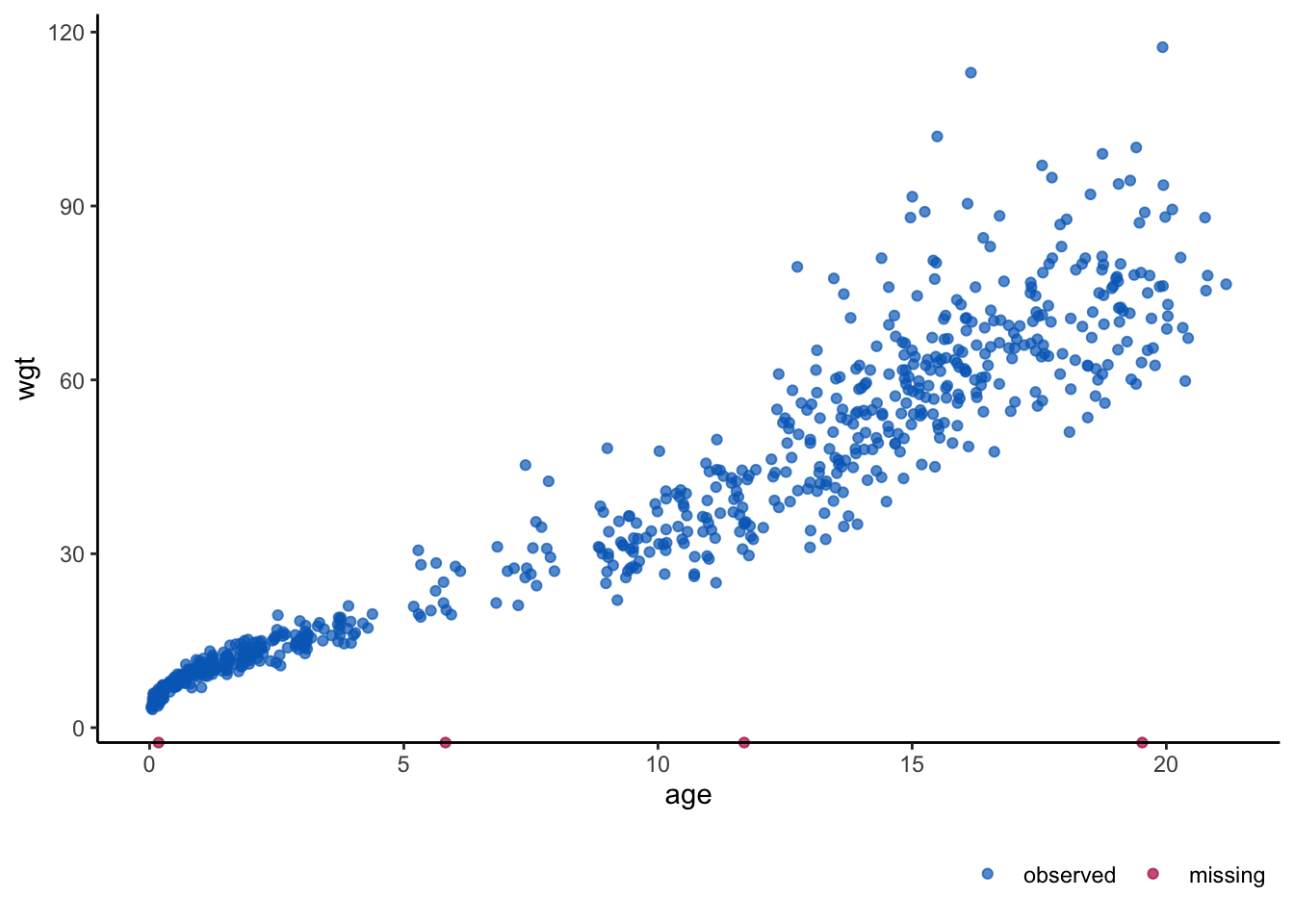

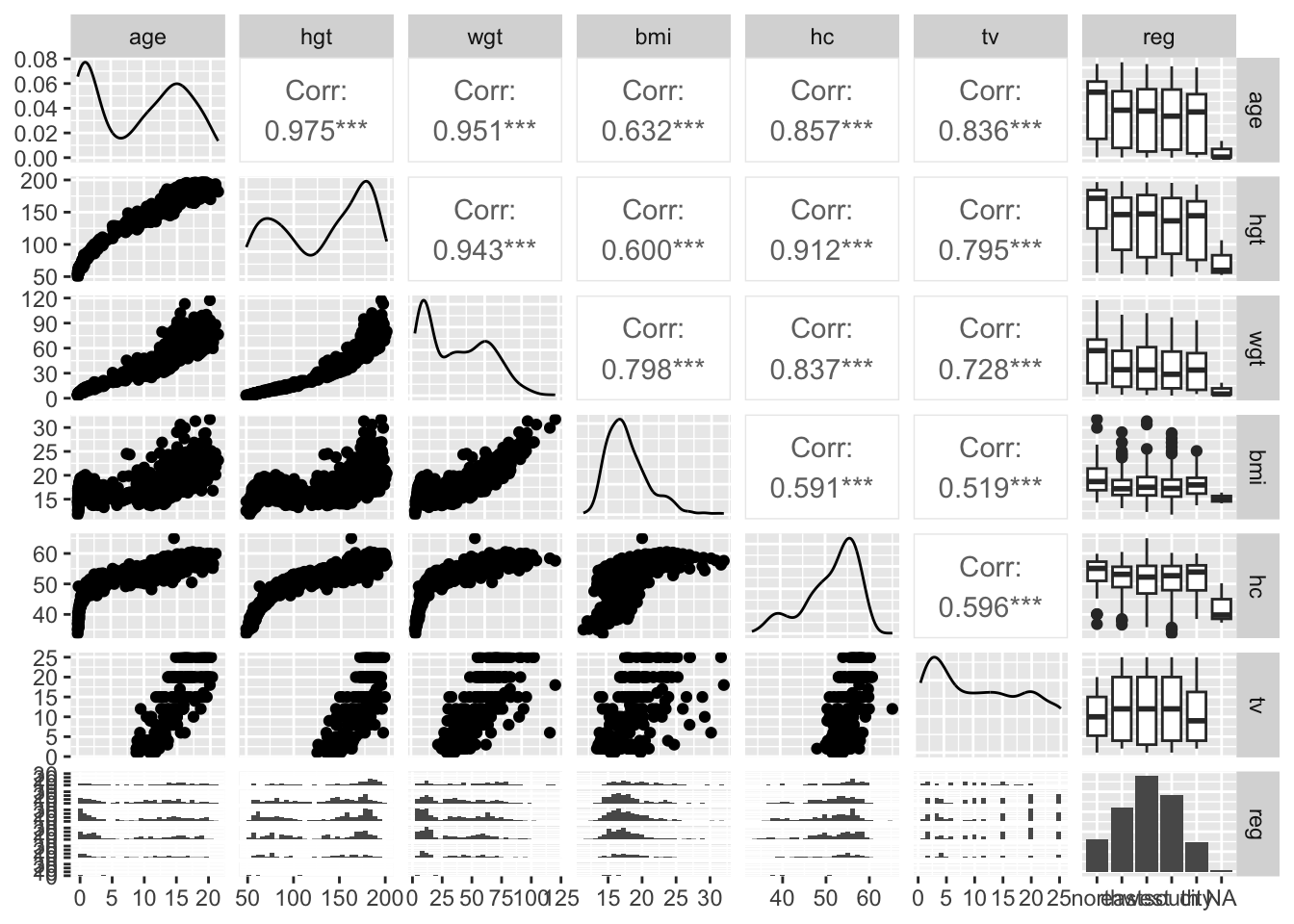

ggmice(boys, aes(age, wgt)) + geom_point()

Code
imp <- mice(boys, print = FALSE, m = 10, seed = 24415)
fit <- with(imp, lm(wgt ~ age))
est <- pool(fit)
est
Class: mipo    m = 10
         term  m estimate        ubar            b           t dfcom       df
1 (Intercept) 10 4.275250 0.242037333 2.812862e-04 0.242346747   746 742.9581
2         age 10 3.587684 0.001842701 5.689418e-06 0.001848959   746 740.7905
          riv      lambda         fmi
1 0.001278376 0.001276744 0.003954437
2 0.003396298 0.003384802 0.006064630

5.1.11 Pima indians R-example

Code
imp <- mice(Pima.tr2, print = FALSE, m = 10, seed = 24415)
fit <- with(imp, glm(type ~ bmi,family = "binomial"))
est <- pool(fit)
est
Class: mipo    m = 10
         term  m    estimate         ubar            b            t dfcom
1 (Intercept) 10 -3.84045347 0.4798495316 6.914875e-03 0.4874558946   298
2         bmi 10  0.09929536 0.0004251267 6.134841e-06 0.0004318751   298
        df        riv     lambda        fmi
1 289.1214 0.01585156 0.01560421 0.02234384
2 289.1090 0.01587368 0.01562564 0.02236542

Identify the the different estimates defined above!

df is the \(\nu\) above (Barnard-Rubin), while dfcom is the \(\nu_{\text{com}}\).

5.2 Bayesian view

Presented in writing in class, see classnotes lecture 6

5.3 What can Rubin’s rules be used on?

For inference (see above for CI and \(p\)-value using t- and Fisher distribution) the assumption is that \(\overline{Q}\) is approximately multivariate normal.

  • Regression parameters in multiple linear regression
  • Regression parameters in logistic regression
  • Correlations: but use Fishers z-transform to become more normally distributed
  • ROC-AUC
  • Recently also predictions from the analysis model

6 Imputation model in multiple imputation

6.1 Multiple linear regression imputation model

(van Buuren (2018) Chapter 3.2.1 and 3.2.2.)

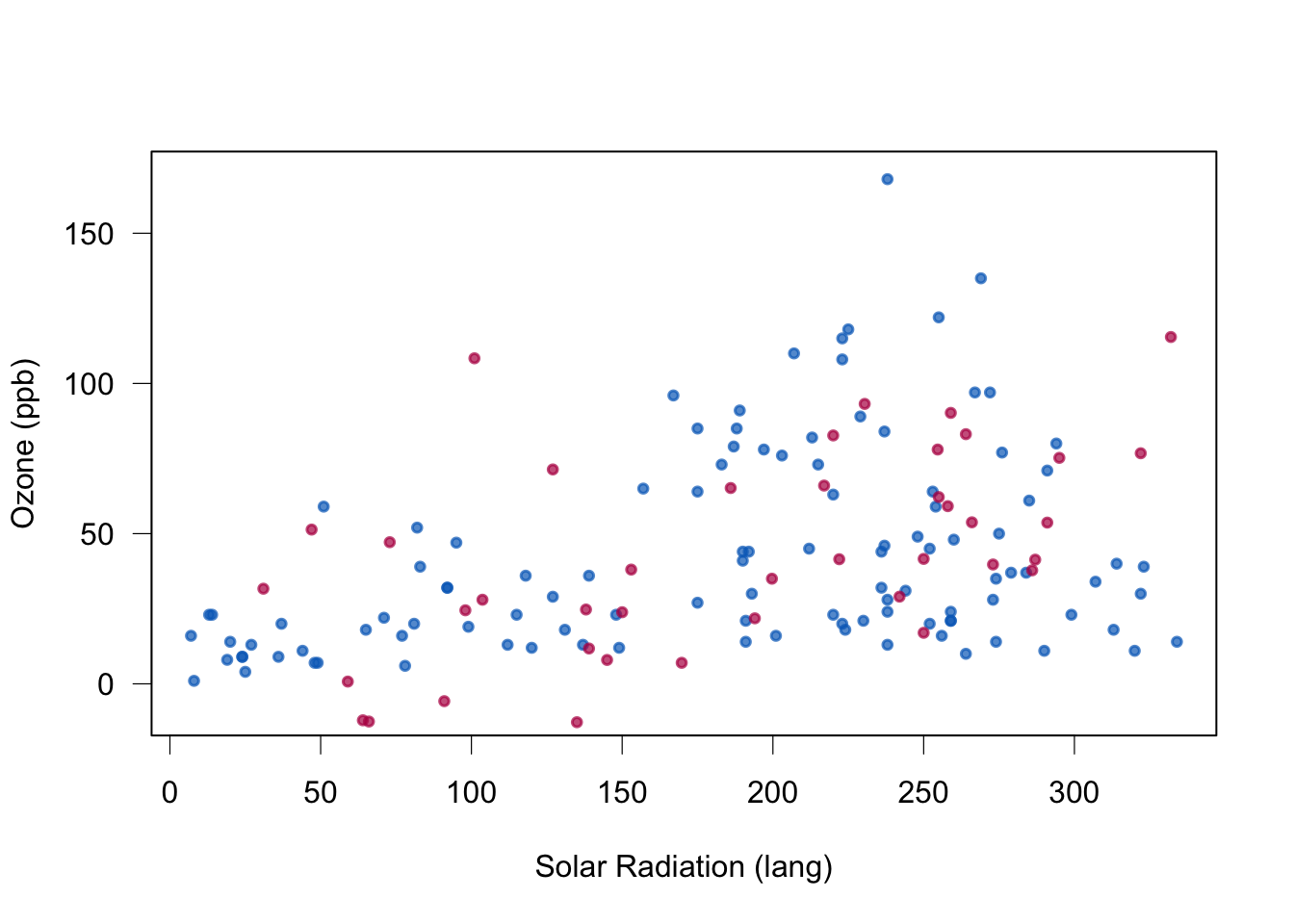

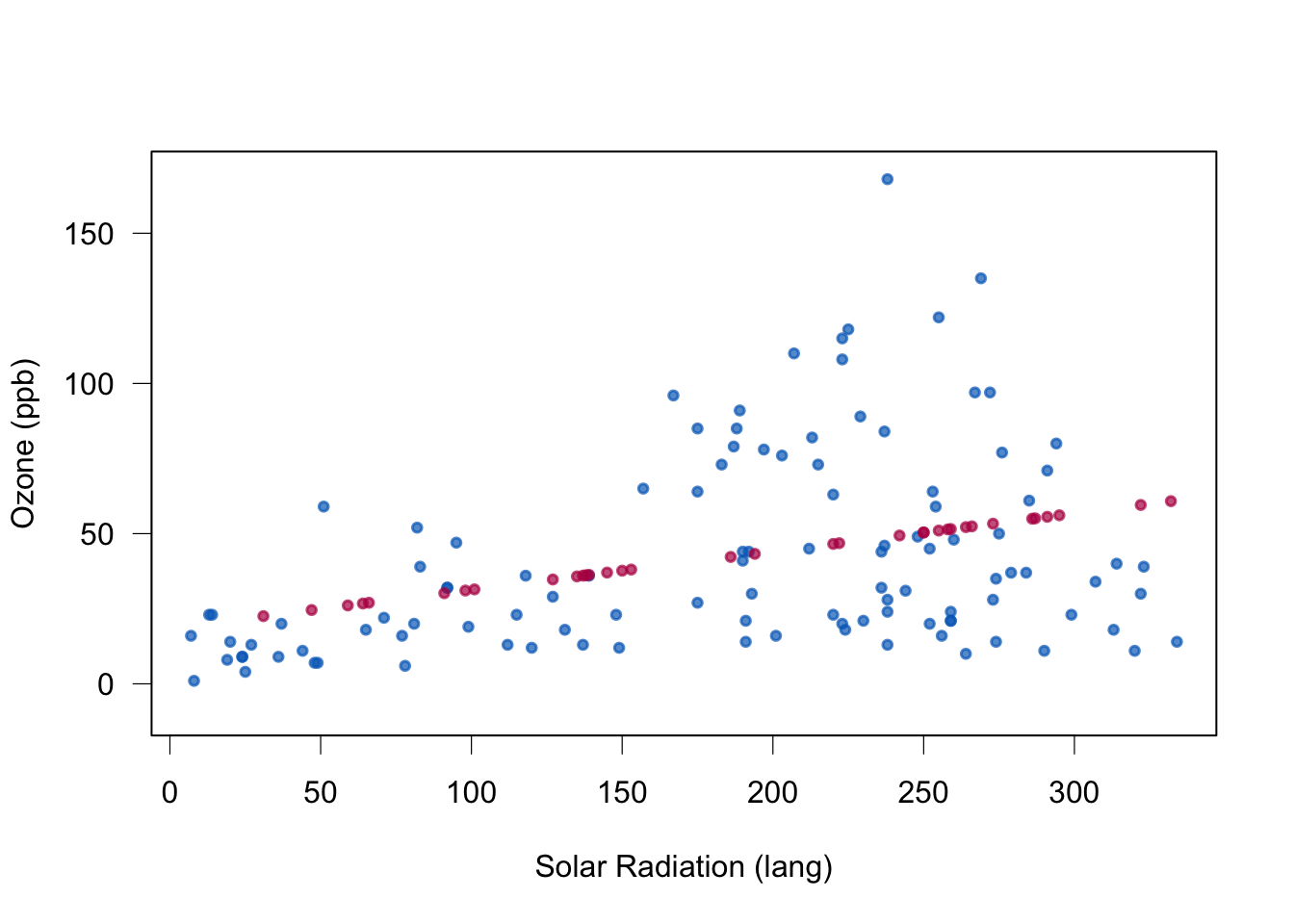

Above, we looked at the two methods called “regression imputation” Section 3.6 and “stochastic regression imputation” Section 3.7. We may add one more method, the “Bayesian (multiple) imputation linear regression”.

The setting here is that

  • we are missing values in one covariate in the analysis model,
  • but have complete data for all other covariates and the response.
  • We now assume a multiple linear regression model with the covariate with missing values as the response,
  • and other covariates and the analysis model response as covariates in this imputation model

Note on these three methods.

For the Bayesian part, the Wikipedia entry for Bayesian linear regression is useful reading, and we will also look into this in Part 2 on ridge regression (L7).

Summary: if the imputation model is a multiple linear regression model, and all covariates in the model are known (only missing values in the covariate that we make our target response), we know how to draw new observations to impute the missing values - and we may construct many imputed data sets.

6.2 Predictive mean matching

(van Buuren (2018) Chapter 3.4)

An hot deck method is a method where values are imputed based on existing values in the data set, by matching the missing observation with each of the observed observations (individuals).

Above (in the notes) we have considered the Bayesian linear regression and the “starting point” of the algorithm is that we have estimated the multiple linear regression coefficient \(\hat{\phi}\) and drawn \(\dot \phi\) from the posterior distribution.

Algorithm 3.3 in van Buuren (2018) Section 3.4.2, copied from github Rmd file:

  1. Calculate \(\dot\phi\) and \(\hat\phi\) by Steps 1-8 of Algorithm 3.1.

  2. Calculate \(\dot\eta(i,j)=|X_i^\mathrm{obs}\hat\phi-X_j^\mathrm{mis}\dot\phi|\) with \(i=1,\dots,n_1\) and \(j=1,\dots,n_0\).

  3. Construct \(n_0\) sets \(Z_j\), each containing \(d\) candidate donors, from \(Y_\mathrm{obs}\) such that \(\sum_d\dot\eta(i,j)\) is minimum for all \(j=1,\dots,n_0\). Break ties randomly.

  4. Draw one donor \(i_j\) from \(Z_j\) randomly for \(j=1,\dots,n_0\).

  5. Calculate imputations \(\dot y_j = y_{i_j}\) for \(j=1,\dots,n_0\).

6.3 Missing patterns

Code
#|echo: false
# code from https://github.com/stefvanbuuren/fimdbook/blob/master/R/fimd.R
data <- matrix(sample(1:100,4*8*3,replace=TRUE),nrow=8*4,
                dimnames=list(NULL,c("A","B","C")))
data <- as.data.frame(data)
data[c(31:32),"A"] <- NA
data[c(15:16,22:24,30:32),"B"] <- NA
data[c(6:8,12:16,17:21,27:29),"C"] <- NA
mdpat <- cbind(expand.grid(rec = 8:1, pat = 1:4, var = 1:3), r=as.numeric(as.vector(is.na(data))))
pattern1 <- data[1:8,]
pattern2 <- data[9:16,]
pattern3 <- data[17:24,]
pattern4 <- data[25:32,]
#types <-  c("Univariate","Monotone","File matching","General")
types <-  c("Univariate","Monotone","General")
mdpat3=mdpat[mdpat$pat!=3,]
levelplot(r~var+rec|as.factor(pat), data=mdpat3,
            as.table=TRUE, aspect="iso",
            shrink=c(0.9),
            col.regions = mdc(1:2),
            colorkey=FALSE,
            scales=list(draw=FALSE),
            xlab="", ylab="",
            between = list(x=1,y=0),
            strip = strip.custom(bg = "grey95", style = 1,
                                 factor.levels = types))

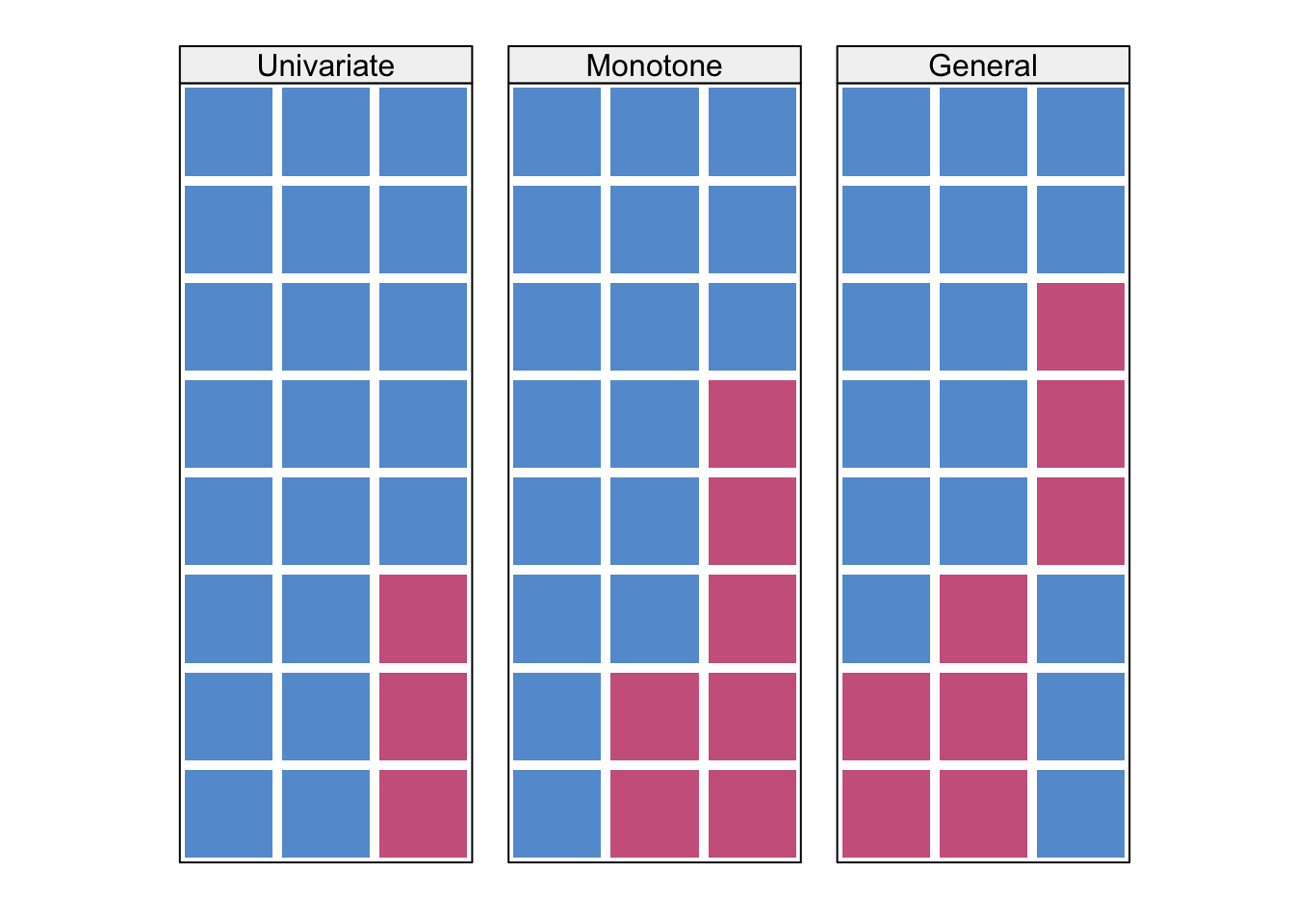

For univariate missing pattern, we already have a solution above Section 6.1, and this solution can be made more flexible with other regression types.

For monotone patterns, see Molenberghs et al. (2014) Section 12.3.1 for regression-based imputation - which can be seen as using the univariate missing pattern solution in sequence.

6.4 Joint modelling

Joint modelling handles general missing patterns, and assumes missing data are MAR.

A joint distribution for all variables are specified, often a multivariate normal distribution. Imputations are drawn from this model, and this can be done pr missing data pattern based on the conditional distribution for these patterns.

This method is popular with multilevel data (hierarchical model), and mixed types of variables (continuous, binary, categorical).

A popular solution is to model the observed data using Markov Chain Monte Carlo (MCMC) and treating the missing values as parameters and updating them in the MCMC algorithm.

See Molenberghs et al. (2014) Chapter 14.

6.5 Fully conditional specification

(also called chained equations, sequantial regression multivariate imputation)

van Buuren (2018) Sections 4.5.1 and 4.5.2 and Molenberghs et al. (2014) Chapter 13.

Also this type of solution is for general missing patterns, and when missing data are MAR.

6.5.1 Notation

We here need (even one more) new notation.

Let all variables for the imputation models be denoted \(Y\). This then includes the response and covariates of the analysis model, and additional variables that is to be included in the imputation model. Assume the data are now put into a \(N \times p\) matrix for \(N\) observations (rows) and \(p\) variables (columns).

  • \(Y_{j}\): is then the vector with the \(j\)th variable to be modelled - this will be a response in the imputation model
  • and the elements of \(Y_{_j}\) are either observed \(Y^{\mathrm{obs}}_{j}\) or missing \(Y^{\mathrm{mis}}_{j}\).
  • \(Y_{-j}\): is then a matrix with all variables except the \(j\)th variable and are the covariates in an imputation model where \(Y_{j}\) is the response.
  • \(R\) is the indicator matrix giving the missing pattern of \(Y\).
  • \(\dot Y_j\): is a imputation of missing values in \(Y^{\mathrm{mis}}_{j}\).
  • \(\phi_j\): are parameters in the imputation model where \(Y_{j}\) is the response and \(Y_{-j}\) are the covariates. This parameter is not related to the parameters of the analysis model.

6.5.2 MICE algorithm

The following algorithm is presented in Molenberghs et al. (2014) Figure 13.3 and van Buuren (2018) Algorithm 4.3 (Section 4.5.2), and copied from github Rmd file.

  1. Specify an imputation model \(P(Y_j^\mathrm{m}|Y_j^\mathrm{obs}, Y_{-j}, R)\) for variable \(Y_j\) with \(j=1,\dots,p\).

  2. For each \(j\), fill in starting imputations \(\dot Y_j^0\) by random draws from \(Y_j^\mathrm{obs}\).

  1. Repeat for \(t = 1,\dots,M\).

  2. Repeat for \(j = 1,\dots,p\).

  3. Define \(\dot Y_{-j}^t = (\dot Y_1^t,\dots,\dot Y_{j-1}^t,\dot Y_{j+1}^{t-1},\dots,\dot Y_p^{t-1})\) as the currently complete data except \(Y_j\).

  4. Draw \(\dot\phi_j^t \sim P(\phi_j^t|Y_j^\mathrm{obs}, \dot Y_{-j}^t, R)\).

  5. Draw imputations \(\dot Y_j^t \sim P(Y_j^\mathrm{mis}|Y_j^\mathrm{obs}, \dot Y_{-j}^t, R, \dot\phi_j^t)\).

  6. End repeat \(j\).

  7. End repeat \(t\).

The number of iterations \(t\) is recommended to be 5 to 10. However, convergence of the algorithm can only be seen when it has been achieved, so more iterations may be needed.

Maybe this is not very clear from the algoritm, but this is a Markov Chain Monte Carlo method, and in particular it is a Gibbs sampler (if the conditional distribution together form a joint distribution). The algorithm must then be able to converge to a stationary distribution for us to use the results. Please refer to TMA4300 Computation statistics for detail on MCMC.

In the R mice package the \(m\) multiple imputation data sets (streams) are run in parallell - that is the MICE algorithm listed above is run \(m\) times simultaneously and convergence can be monitored for each and all streams together. In convergece plots then the \(m\) streams are plotted together for each of the \(t\) iterations.

The algorithm can run into problems if the variables in the imputation model are highly correlated, when the missing rate is high and when there are constraints on the imputation model.

See slides pages 85+86 of MICE course for difference between convergence and non-convergence of the MICE algorithm.

6.5.3 Predictors in imputation models

  • Include “all” variables to be used in the main analysis (the analysis model)
  • Better with too many predictors than too few (rich model is best)
  • Include the data analysis model response as covariate in the imputation models, see for example Moons KG (2006)
  • Include variables that are predictors of missingness, or associated with the varible to be inputed (none of these may be part of the analysis model)
  • Limit the number of predictors for stability, and many MI methods does not handle correlated predictors very well
  • Nonlinear effects and interactions - should that be included? Note: passive imputation!

6.6 R examples

6.6.1 NHANES

Code
imp = mice(nhanes, print = FALSE, m = 10, seed = 24415)
fit = with(imp, lm(bmi ~ age))
# Number of missing observations for our variables
imp$nmis
age bmi hyp chl
  0   9   8  10
Code
# Summary of mice results
summary(pool(fit))
         term  estimate std.error statistic       df      p.value
1 (Intercept) 29.621111  2.248428 13.174145 12.62920 9.477666e-09
2         age -1.802222  1.108781 -1.625408 14.42517 1.257173e-01
Code
# Trace line plot, can be used to check convergence

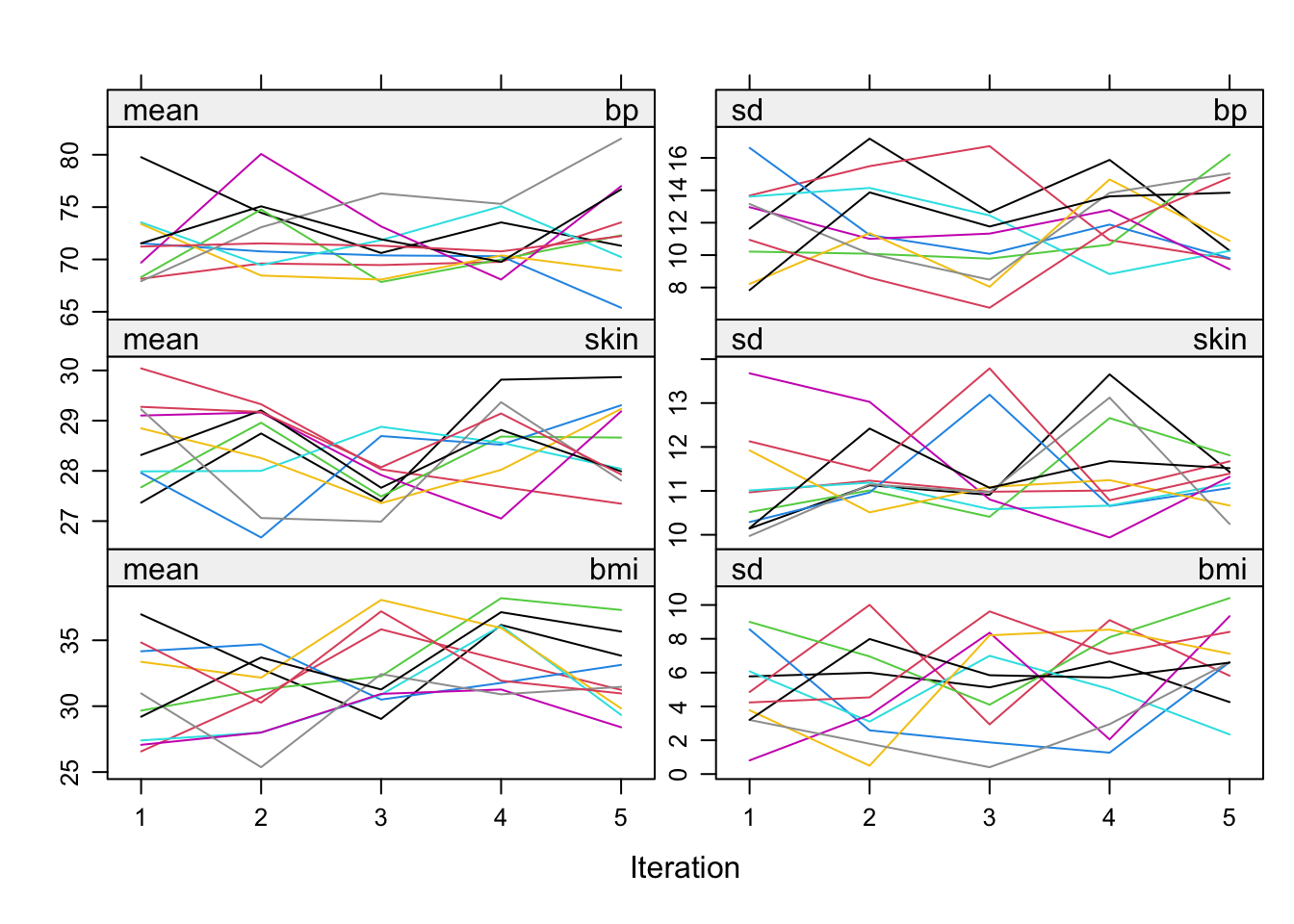

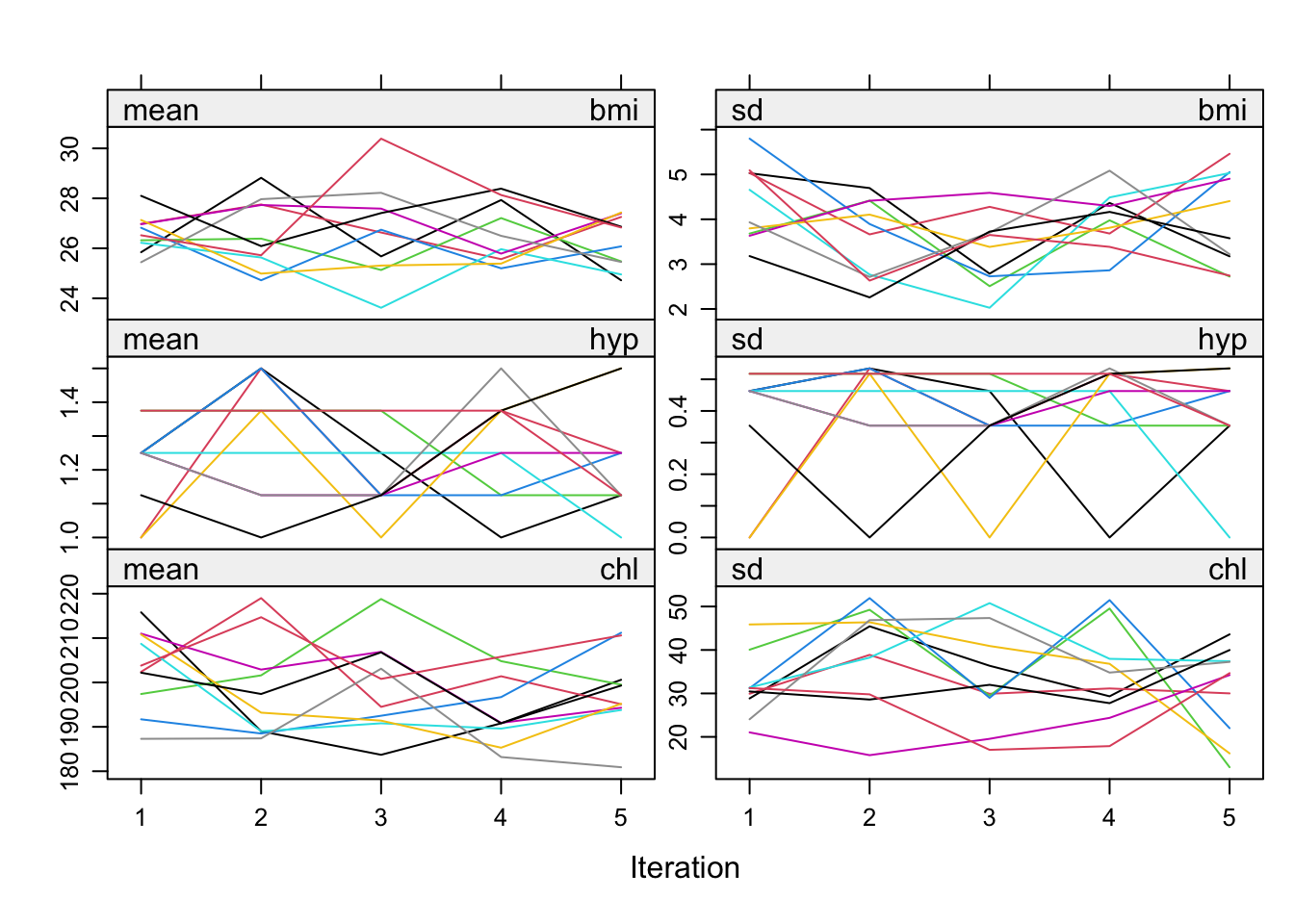

plot(imp)

Code

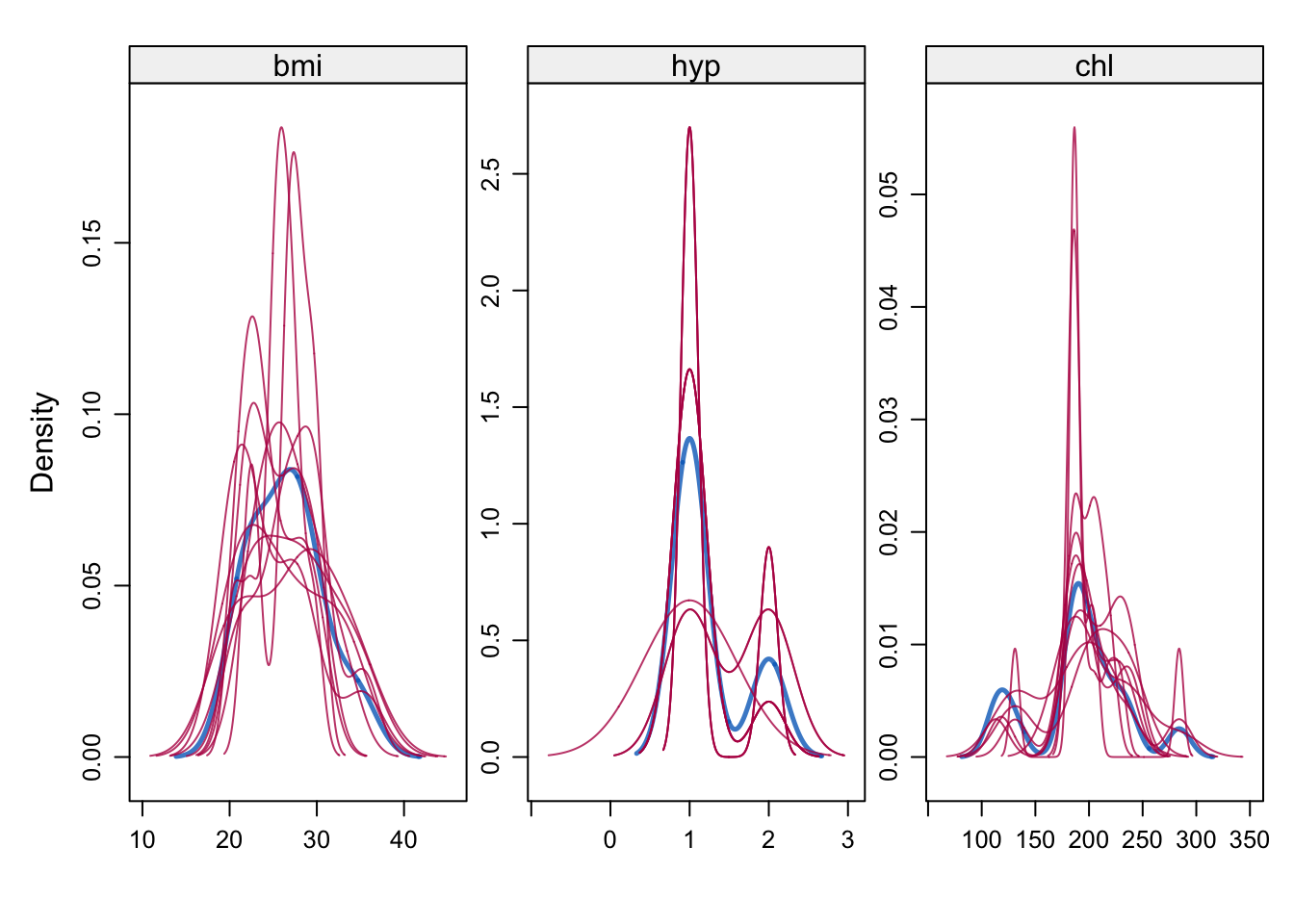

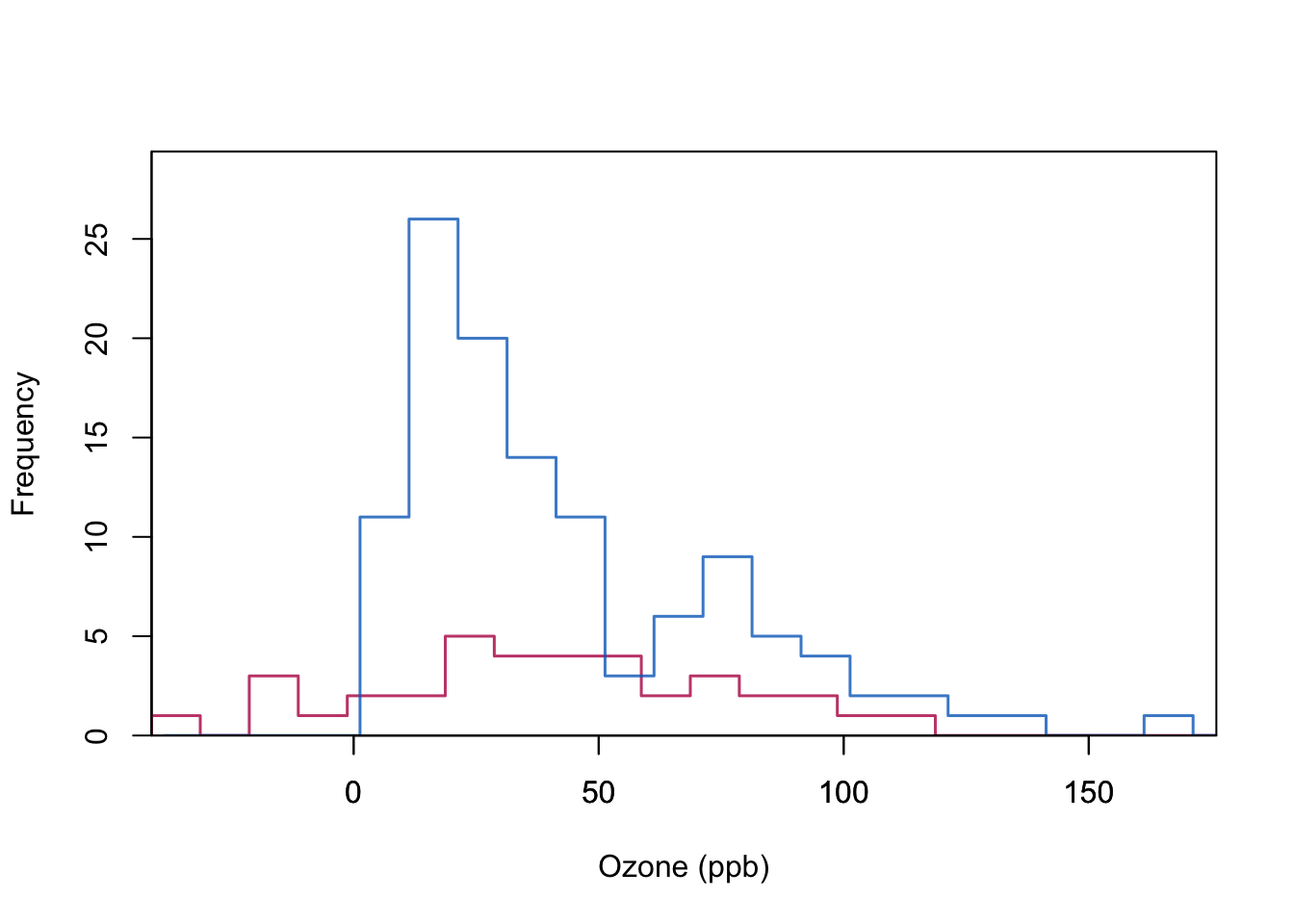

# Density of observed and imputed data, observed in blue

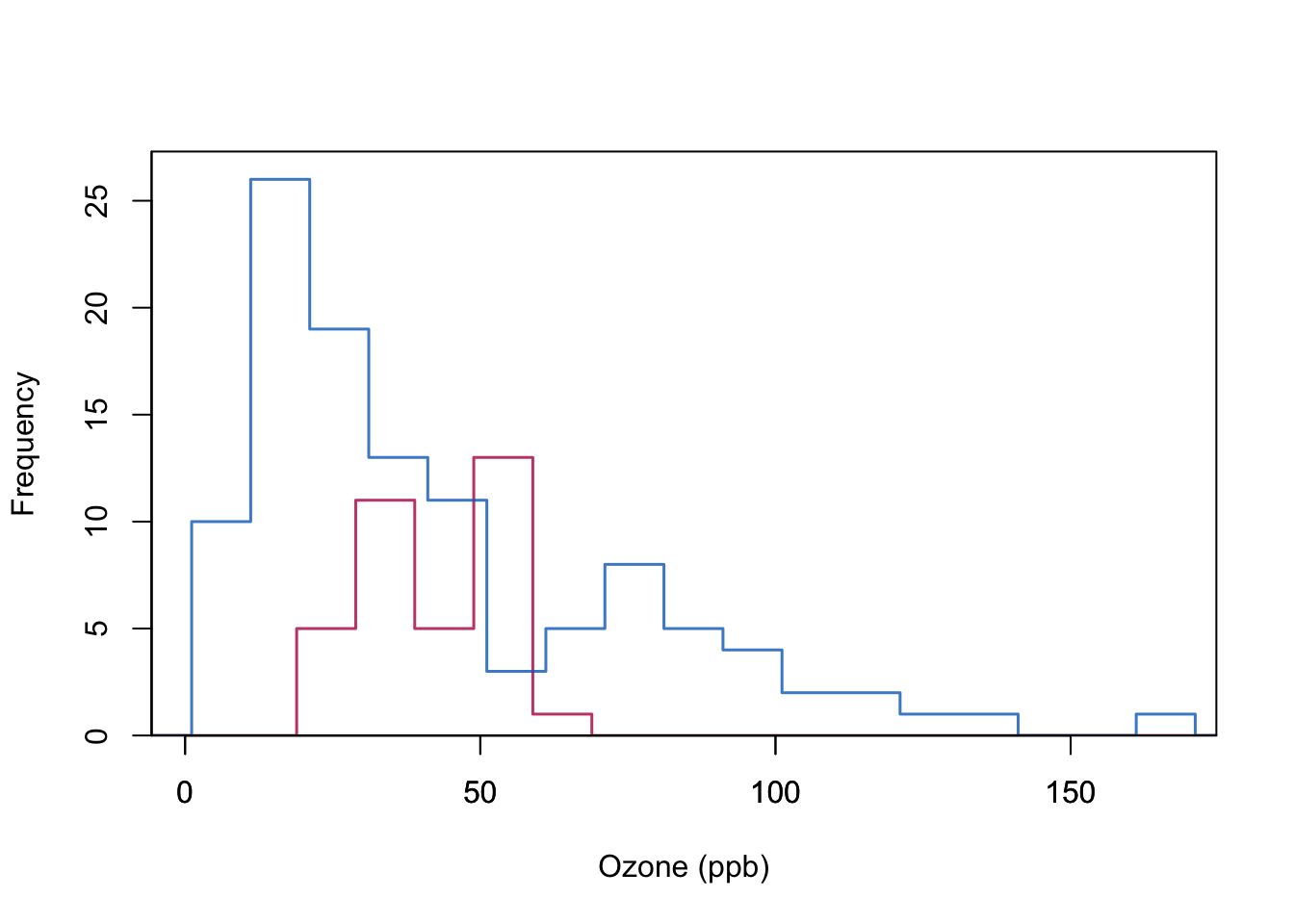

densityplot(imp)

Code

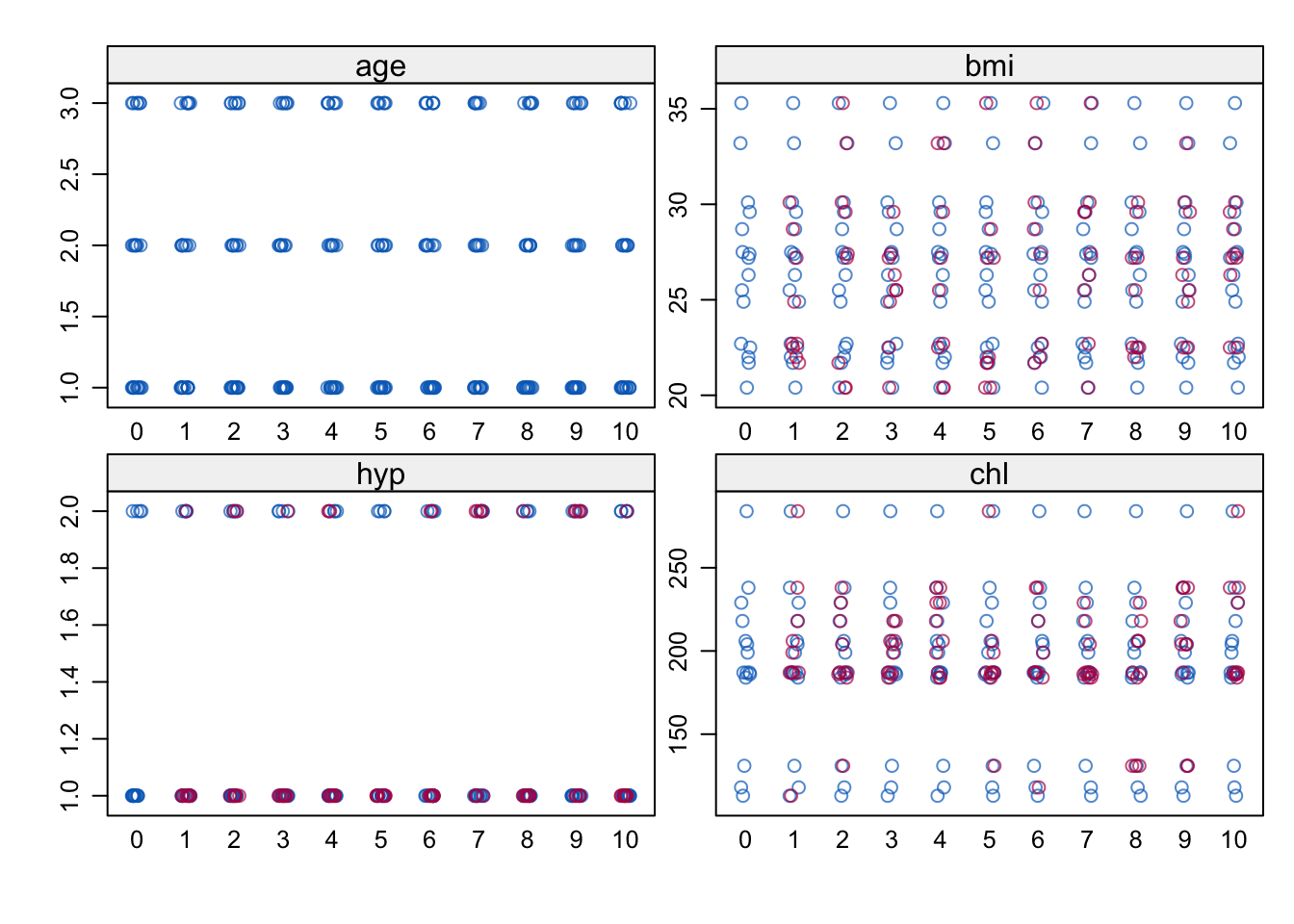

# One dimensional scatter plots for observed and imputed data, observed in blue

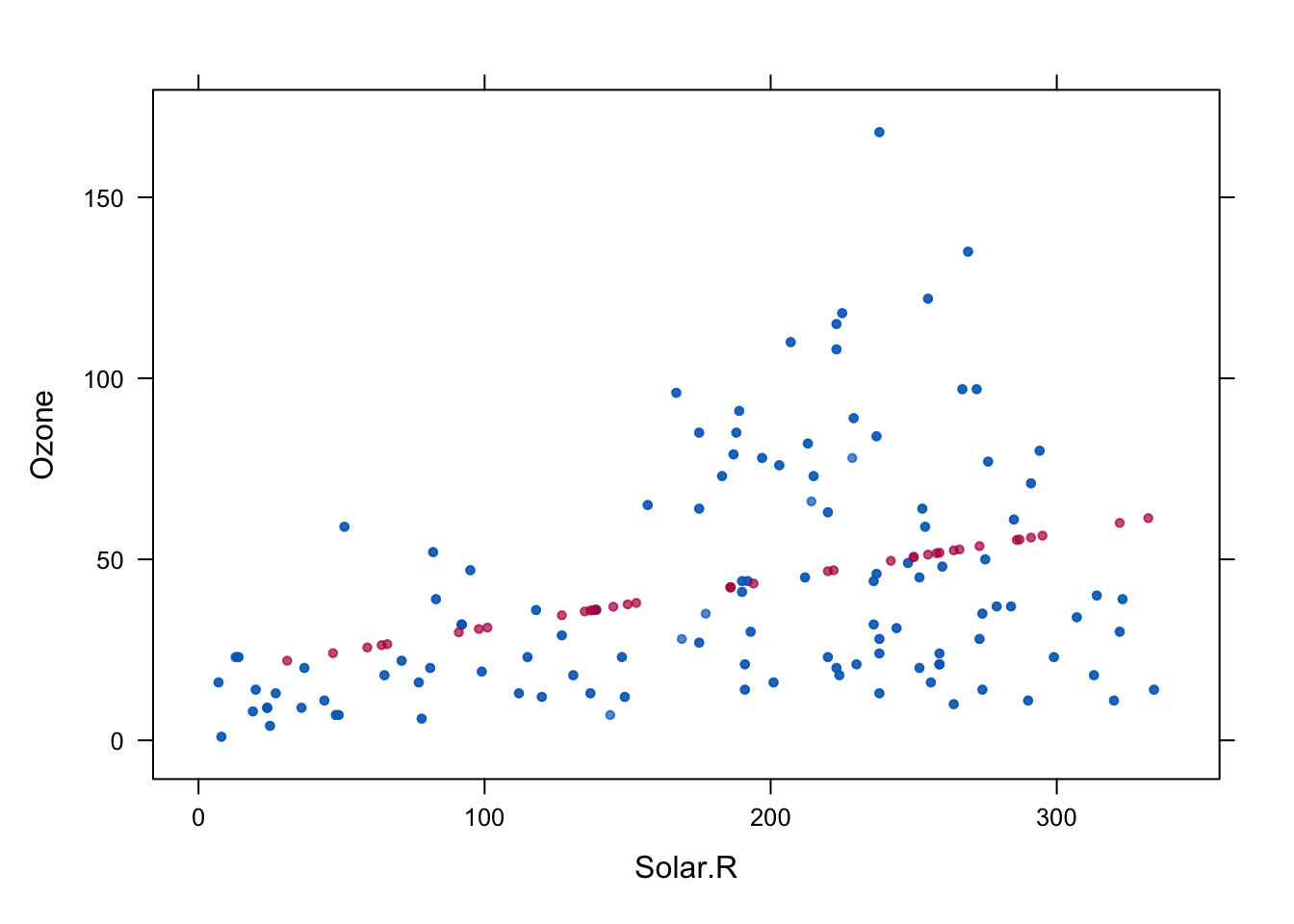

stripplot(imp)

6.6.2 Airquality

Code
imp <- mice(airquality, print = FALSE, m = 100, seed = 24415)
imp$predictorMatrix
        Ozone Solar.R Wind Temp Month Day
Ozone       0       1    1    1     1   1
Solar.R     1       0    1    1     1   1
Wind        1       1    0    1     1   1
Temp        1       1    1    0     1   1
Month       1       1    1    1     0   1
Day         1       1    1    1     1   0
Code
imp$method # only two variables have missing data and these use PMM
  Ozone Solar.R    Wind    Temp   Month     Day
  "pmm"   "pmm"      ""      ""      ""      ""
Code
fit <- with(imp, lm(Wind~Temp+Month+Solar.R+Ozone))
est <- pool(fit)
est
Class: mipo    m = 100
         term   m     estimate         ubar            b            t dfcom
1 (Intercept) 100 15.904460339 5.543541e+00 3.212965e-01 5.868050e+00   148
2        Temp 100 -0.051514199 1.389312e-03 1.546204e-04 1.545479e-03   148
3       Month 100 -0.081483057 3.514546e-02 1.676292e-03 3.683851e-02   148
4     Solar.R 100  0.005374955 7.710940e-06 7.322321e-07 8.450495e-06   148
5       Ozone 100 -0.056164250 1.013722e-04 2.801934e-05 1.296717e-04   148
        df        riv     lambda        fmi
1 137.3781 0.05853830 0.05530107 0.06876042
2 129.5290 0.11240569 0.10104739 0.11461352
3 138.9150 0.04817279 0.04595883 0.05940408
4 131.8991 0.09590976 0.08751611 0.10104450
5 108.2238 0.27916473 0.21823986 0.23229729
Code

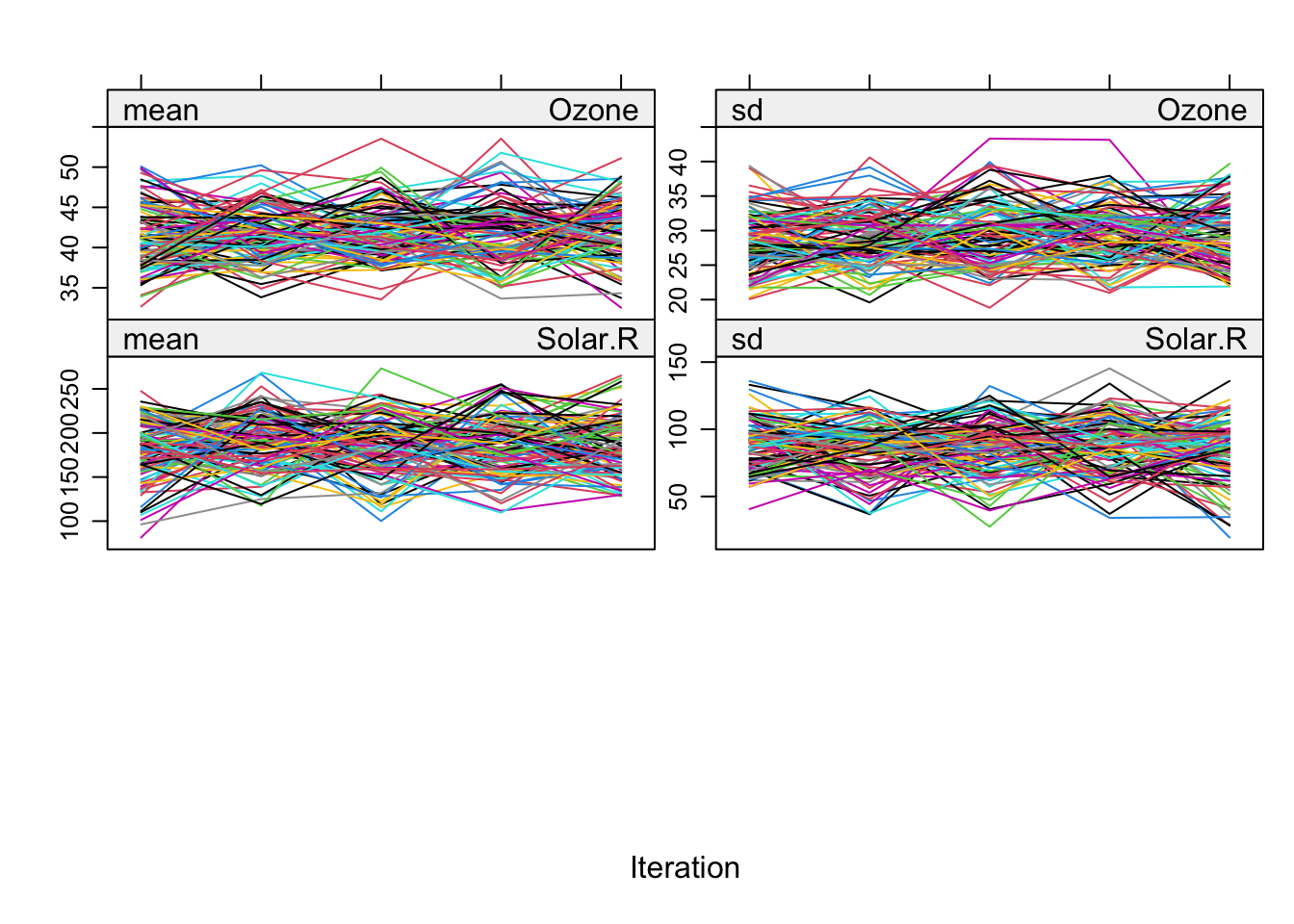

# Trace line plot, can be used to check convergence
plot(imp)

Code

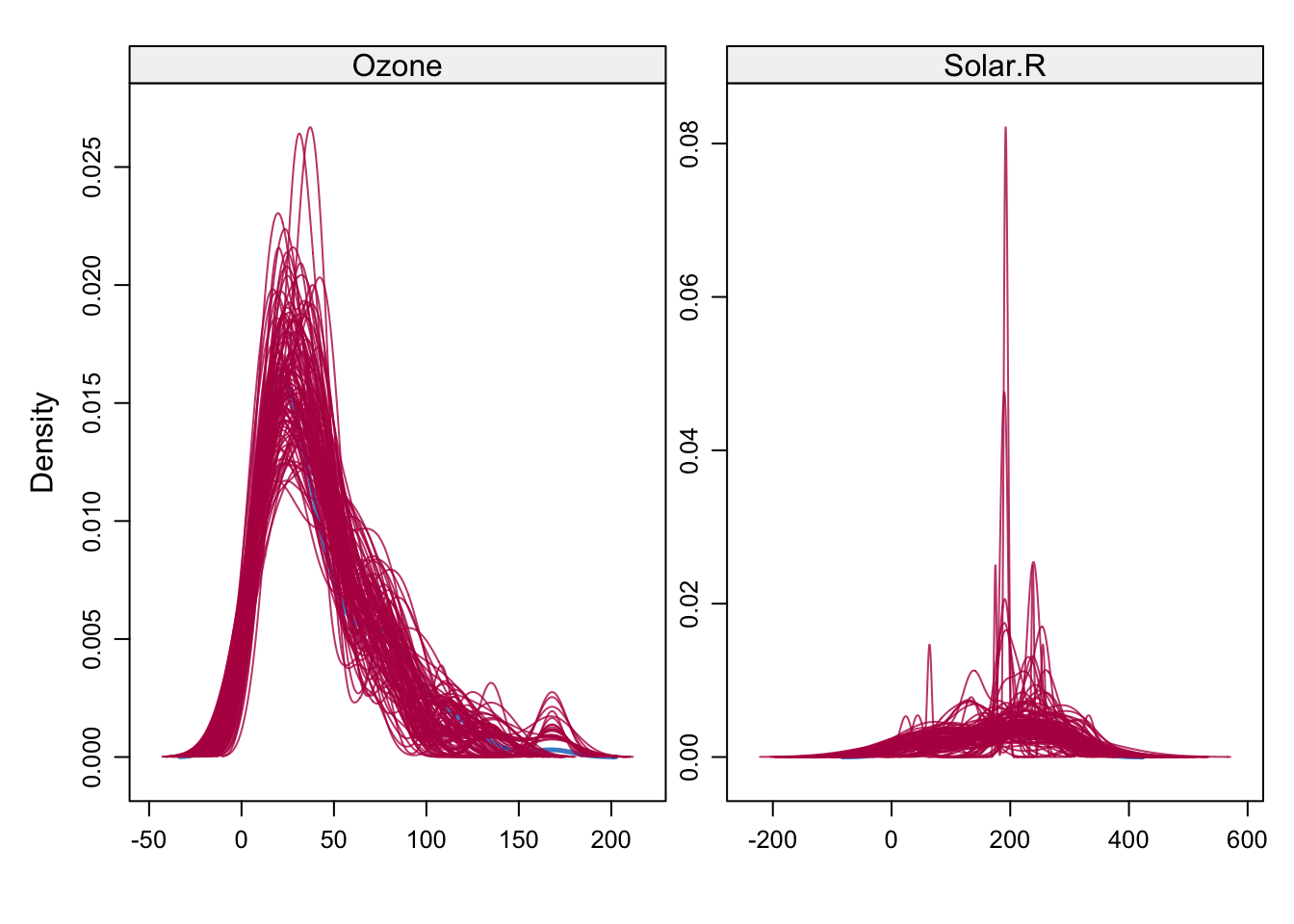

# Density of observed and imputed data, observed in blue
densityplot(imp)

Code

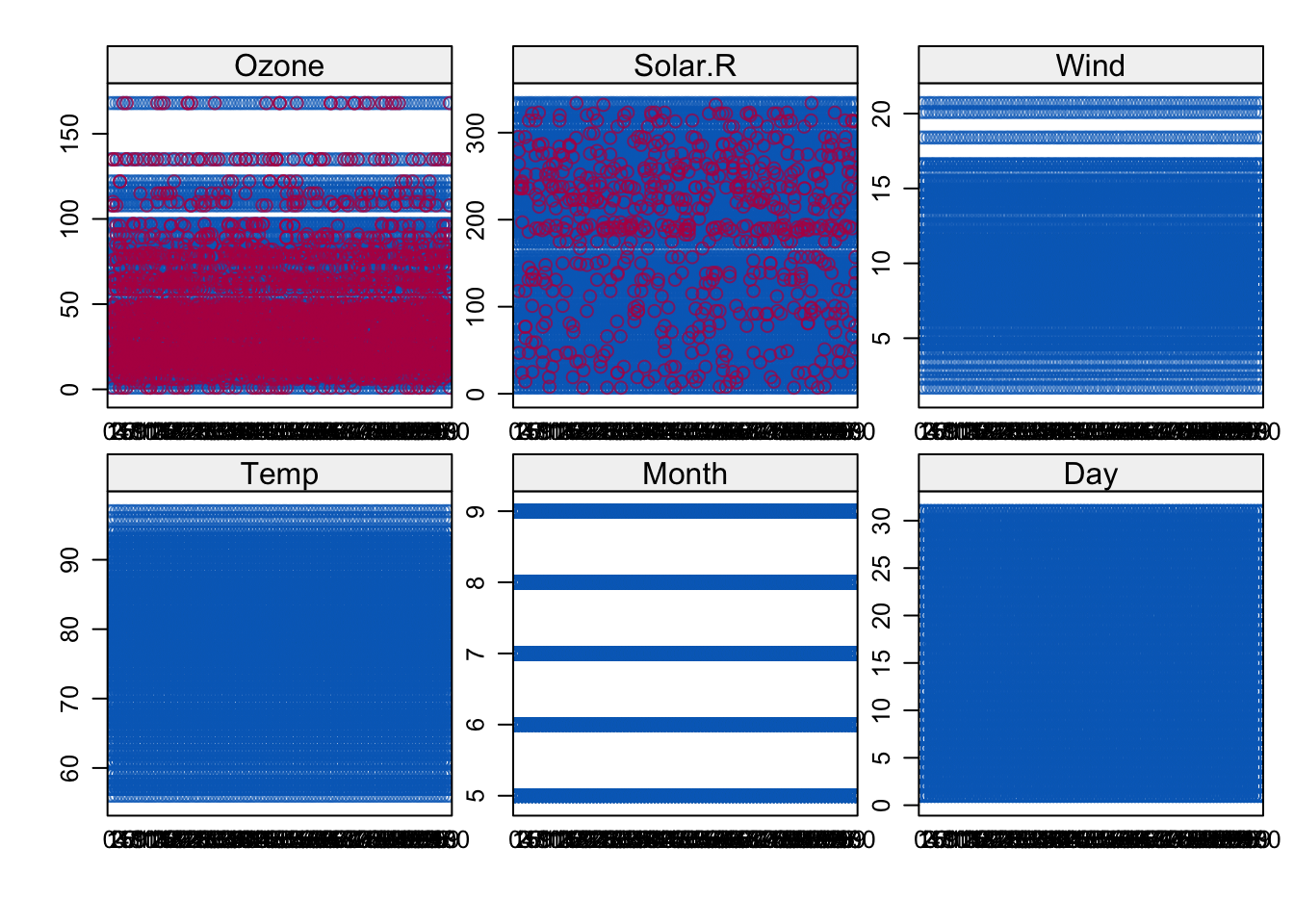

# One dimensional scatter plots for observed and imputed data, observed in blue
stripplot(imp)

6.6.3 Pima indians

Default is that all available covariates are used as predictors for each missing variable. Here we do not have missing data in all variables, only skin, bp and bmi.

The methods for each imputation model are by default PMM for continuous and logistic regression for binary, and ordered logistic for categorical ordered. We only have continuous variables so all have PMM as default.

Code
imp <- mice(Pima.tr2, print = FALSE, m = 10, seed = 24415)
imp$predictorMatrix
      npreg glu bp skin bmi ped age type
npreg     0   1  1    1   1   1   1    1
glu       1   0  1    1   1   1   1    1
bp        1   1  0    1   1   1   1    1
skin      1   1  1    0   1   1   1    1
bmi       1   1  1    1   0   1   1    1
ped       1   1  1    1   1   0   1    1
age       1   1  1    1   1   1   0    1
type      1   1  1    1   1   1   1    0
Code
imp$method # only three variables have missing data and these use PMM
npreg   glu    bp  skin   bmi   ped   age  type
   ""    "" "pmm" "pmm" "pmm"    ""    ""    ""
Code
fit <- with(imp, glm(type ~ bmi+glu+bp+skin+ped+age+npreg,family = "binomial"))
est <- pool(fit)
est
Class: mipo    m = 10
         term  m     estimate         ubar            b            t dfcom
1 (Intercept) 10 -9.017293217 1.768031e+00 8.562343e-02 1.862217e+00   292
2         bmi 10  0.090112079 1.032292e-03 3.242343e-04 1.388950e-03   292
3         glu 10  0.037186980 3.478594e-05 1.619869e-07 3.496413e-05   292
4          bp 10 -0.007477016 2.177787e-04 1.439980e-05 2.336185e-04   292
5        skin 10 -0.005760483 3.130320e-04 1.741249e-04 5.045694e-04   292
6         ped 10  1.278515220 2.844704e-01 3.514902e-04 2.848570e-01   292
7         age 10  0.011237457 2.508869e-04 1.141528e-05 2.634437e-04   292
8       npreg 10  0.124595592 2.756896e-03 5.337703e-06 2.762767e-03   292
         df         riv      lambda         fmi
1 255.36623 0.053271556 0.050577229 0.057926663
2  83.57231 0.345500862 0.256782342 0.273952211
3 288.30227 0.005122346 0.005096242 0.011926973
4 237.55172 0.072733352 0.067801893 0.075552393
5  46.36292 0.611877743 0.379605554 0.404741607
6 289.60952 0.001359155 0.001357310 0.008183080
7 258.19534 0.050049666 0.047664094 0.054956229
8 289.36196 0.002129741 0.002125215 0.008951512
Code
# Trace line plot, can be used to check convergence
plot(imp)

Code

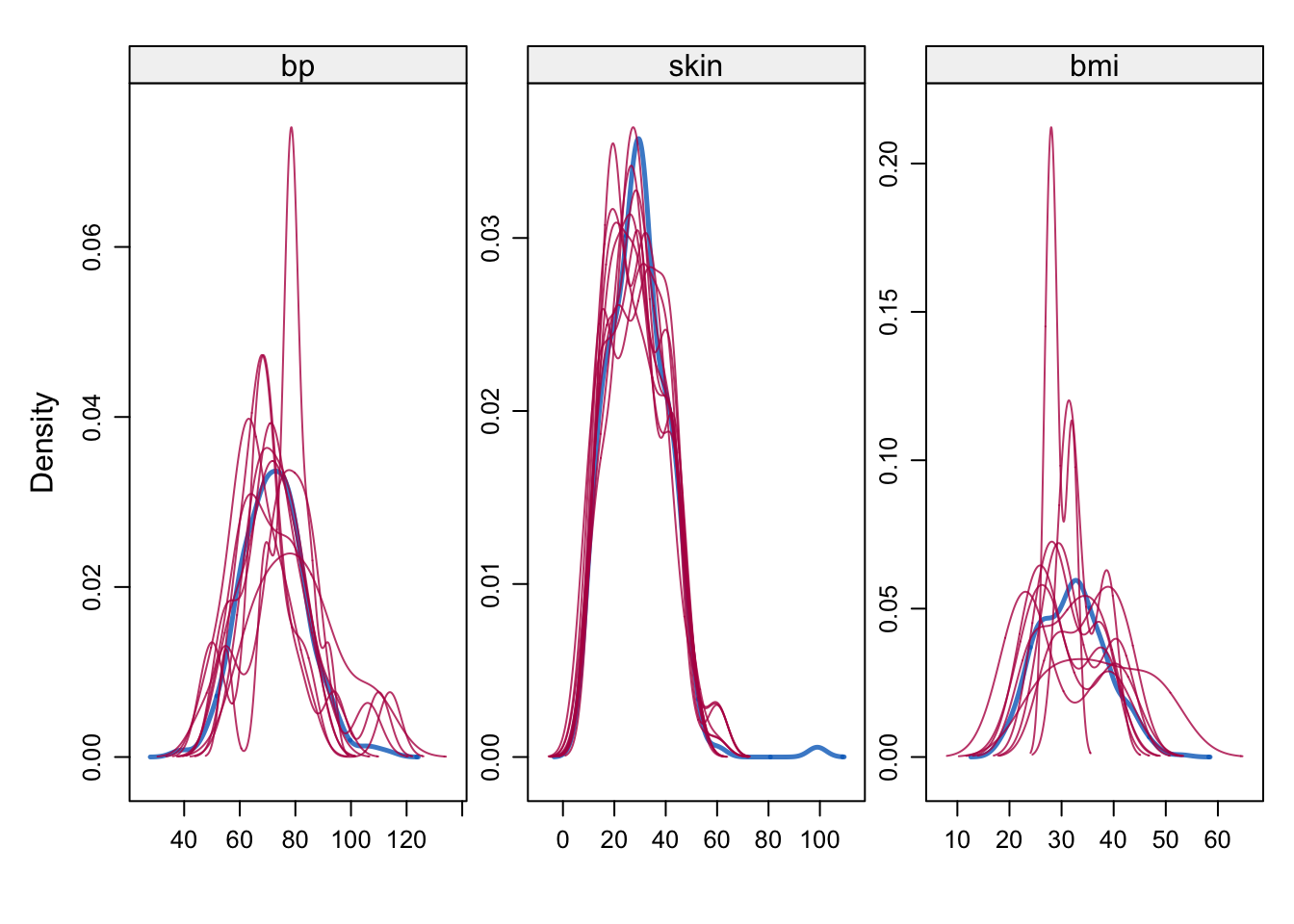

# Density of observed and imputed data, observed in blue
densityplot(imp)

Code

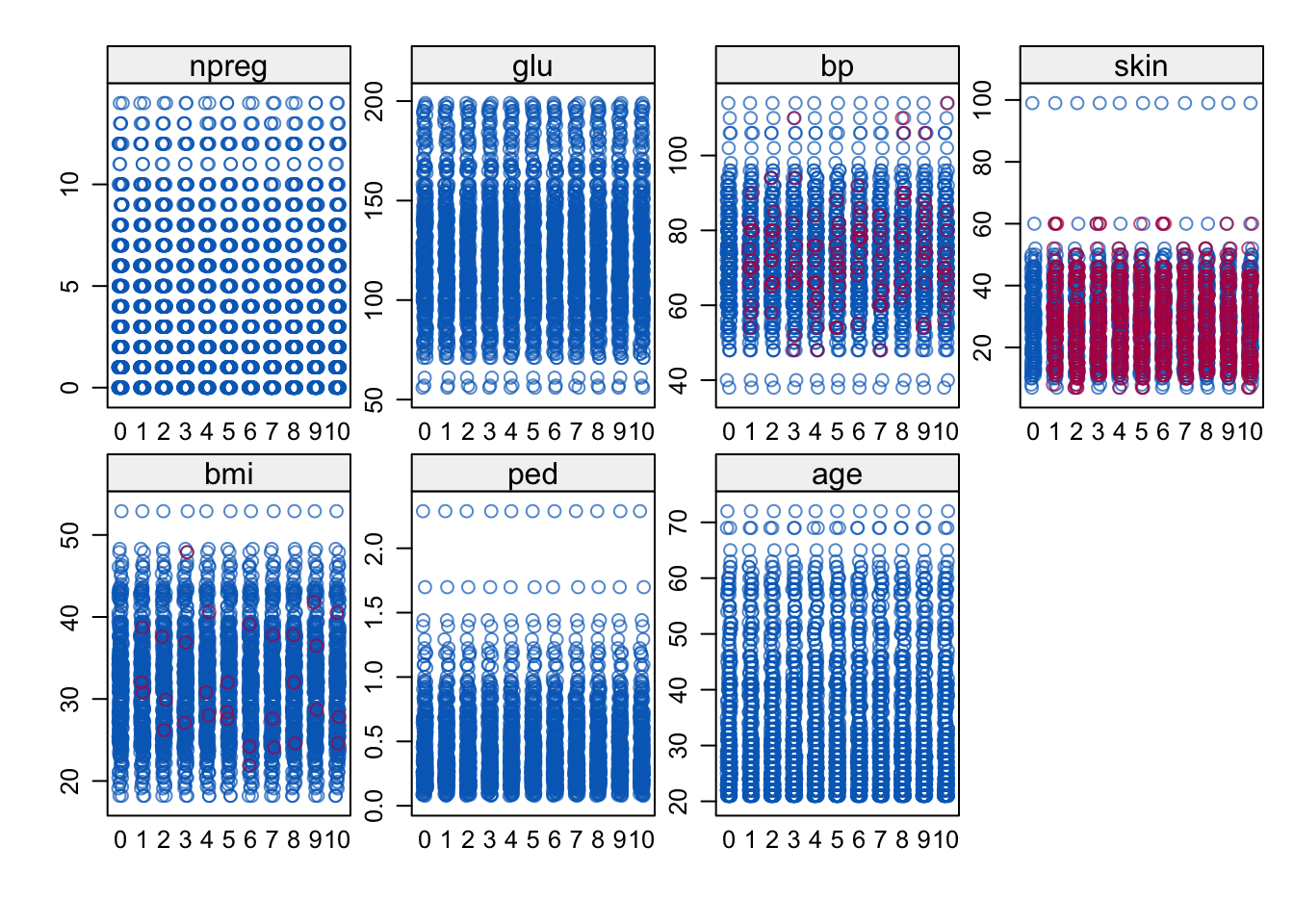

# One dimensional scatter plots for observed and imputed data, observed in blue
stripplot(imp)

7 Model selection and assessment when using multiple imputation

Will address this to some extent in Part 2 and 3. Here are some elements to consider.

  • Model selection can be done in the statistical analysis in the MI-loop, and there is a count method combined with Wald test that can be used to make a consensus model from the potentially \(m\) different MI-models. This is of cause dependent on that we have a parametric model as an analysis model. Done in case study presented in class (not in notes).
  • If the analysis model is not a parametric model, maybe a tree or neural net or ensemble, what do we then do with Rubin’s rules? It is possible to use them on the predictions or on the ROC-AUC. But, is that useful to do on a “training set”?
  • For model assessment we may use a separate test set. This test set will have missing data, and the missing data model can be used to impute \(m\) test sets. These test sets can then be run through the fitted final model (from the traning set) and Rubin’s rules can be used to give results on the test data. Note: role of analysis model response in test set imputed models.
  • Model assessement without a test set may be done using an outer bootstrap loop around the MI-loop. Then the .632+ boostrap estimator is preferred in Wahl et al. (2016). For this publication a model selection step was not present - only model assessment.
  • Other methods than regression type may be used for imputation, and SuperMICE is using an ensemble machine larning (we will cover the autoML aka SuperLearner i Part 3). See Laqueur, Shev, and Kagawa (2021).

8 Not covered

(this semester - will improve)

8.1 Ignorable and nonignorable

to which extent can we analyse the data without estimating the missingness paramterer \(\psi\)? The parameter of interest in the analysis model is \(\theta\). When can we estimated \(\theta\) without knowing \(\psi\)? Little and Rubin: missing data mechanism is ignorable (for likelihood inference) if MAR and parameters \(\theta\) and \(\psi\) distinct. More strict for Baysian inference, then priors for the two must be independent.

Further implications of nonignorability is that \(R\) must be a part of the imputation model.

9 Exercises

Missing… but this will be explored in the Data analysis project!

Maybe you want to look at the exercise from the van Buuren Winnipeg lectures:

https://amices.org/Winnipeg/Practicals/Practical_I.html https://amices.org/Winnipeg/Practicals/Practical_II.html https://amices.org/Winnipeg/Practicals/Practical_III.html https://amices.org/Winnipeg/Practicals/Practical_IV.html

10 References

Efron, Bradley, and Trevor Hastie. 2016. Computer Age Statistical Inference - Algorithms, Evidence, and Data Science. Cambridge University Press. https://hastie.su.domains/CASI/.
Laqueur, Hannah S, Aaron B Shev, and Rose M C Kagawa. 2021. “SuperMICE: An Ensemble Machine Learning Approach to Multiple Imputation by Chained Equations.” American Journal of Epidemiology 191 (3): 516–25. https://doi.org/10.1093/aje/kwab271.
Lydersen, Stian. 2022. “Multippel Imputering Av Manglende Data.” Tidsskrift for Den Norske Legeforening. https://doi.org/10.4045/tidsskr.21.0772.
Molenberghs, Geert, Garrett Fitzmaurice, Michael G. Kenward, Anastasios Tsiatis, and Geert Verbeke. 2014. Handbook of Missing Data Methodology. Chapman & Hall/CRC Handbooks of Modern Statistical Methods. Boca Raton: Chapman; Hall/CRC. https://search.ebscohost.com/login.aspx?direct=true&db=nlebk&AN=1499432&site=ehost-live&scope=site.
Moons KG, Stijnen T, Donders RA. 2006. “Using the Outcome for Imputation of Missing Predictor Values Was Preferred.” J Clin Epidemiol. 59(10): 1092–1101. https://doi.org/10.1016/j.jclinepi.2006.01.009.
van Buuren, Stef. 2018. Flexible Imputation of Missing Data. Second Edition. Boca Raton, FL.: CRC Press.
Wahl, Simone, Anne-Laure Boulesteix, Astrid Zierer, Barbara Thorand, and Mark A. van de Wiel. 2016. “Assessment of Predictive Performance in Incomplete Data by Combining Internal Validation and Multiple Imputation.” BMC Medical Research Methodology 16 (1): 144. https://doi.org/10.1186/s12874-016-0239-7.
